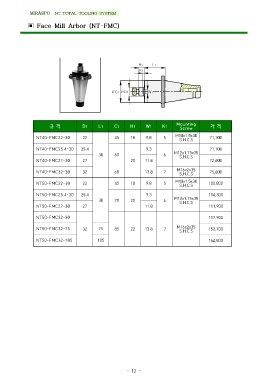

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Face Mill Arbor (NT-FMC)

H1 L1
K1

∅C1 ∅D1 W1

규격 D1 L1 C1 H1 W1 K1 Mounting 가격
NT40-FMC22-30 Screw 71,100

22 45 18 9.8 5 M10x1.5x30
S.H.C.S

NT40-FMC25.4-30 25.4 9.3 71,100
M12x1.75x35
30 60 6 S.H.C.S

NT40-FMC27-30 27 20 11.8 72,600

NT40-FMC32-30 32 68 13.8 7 M16x2x35 75,600
NT50-FMC22-30 22 S.H.C.S

45 18 9.8 5 M10x1.5x30 102,800
S.H.C.S

NT50-FMC25.4-30 25.4 9.3 104,300
M12x1.75x35
30 70 20 6 S.H.C.S

NT50-FMC27-30 27 11.8 111,900

NT50-FMC32-30 117,900
152,700
NT50-FMC32-75 32 75 85 22 13.8 7 M16x2x35 164,800
S.H.C.S

NT50-FMC32-105 105
