MIRAEPO NC TOTAL TOOLING SYSTEM

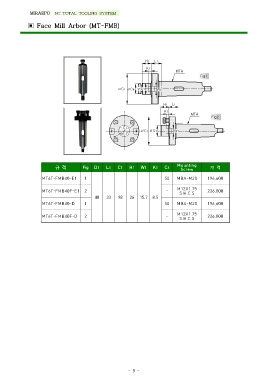

▣ Face Mill Arbor (MT-FMB)

H1 L1 MT#
K1

Fig1

∅C1 ∅C4 ∅D1 W1

H1 L1 MT#
K1

Fig2

P.C.D ∅C1 ∅D1 W1
66.7

규격 Fig D1 L1 C1 H1 W1 K1 C4 M ou n tin g 가격
Screw 196,600
226,800
MT6T-FMB40-E1 1 50 MBA-M20 196,600
226,800
MT6T-FMB40F-E1 2 - M12X1.75
S.H.C.S

40 33 98 26 15.7 8.5

MT6T-FMB40-D 1 50 MBA-M20

MT6T-FMB40F-D 2 - M12X1.75
S.H.C.S

-9-
