MIRAEPO NC TOTAL TOOLING SYSTEM

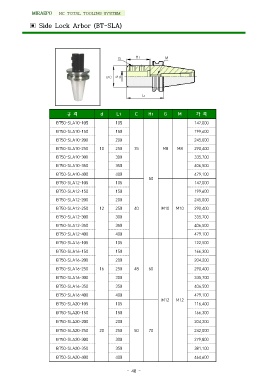

▣ Side Lock Arbor (BT-SLA)
G H1 M
∅C ∅d
L1
규격 d L1 C H1 G M 가격
BT50-SLA10-105 105 147,000
BT50-SLA10-150 150 199,600
BT50-SLA10-200 200 245,000
BT50-SLA10-250 10 250 35 M8 M8 290,400
BT50-SLA10-300 300 335,700
BT50-SLA10-350 350 406,500
BT50-SLA10-400 400 479,100
147,000
50
BT50-SLA12-105 105
BT50-SLA12-150 150 199,600
BT50-SLA12-200 200 245,000
BT50-SLA12-250 12 250 40 M10 M10 290,400
BT50-SLA12-300 300 335,700
BT50-SLA12-350 350 406,500
BT50-SLA12-400 400 479,100
BT50-SLA16-105 105 122,500
BT50-SLA16-150 150 166,300
BT50-SLA16-200 200 204,200
BT50-SLA16-250 16 250 48 60 290,400
BT50-SLA16-300 300 335,700
BT50-SLA16-350 350 406,500
BT50-SLA16-400 400 M12 M12 479,100
BT50-SLA20-105 105 116,400
BT50-SLA20-150 150 166,300
BT50-SLA20-200 200 204,200
BT50-SLA20-250 20 250 50 70 242,000
BT50-SLA20-300 300 279,800
BT50-SLA20-350 350 381,100
BT50-SLA20-400 400 464,600
- 48 -
