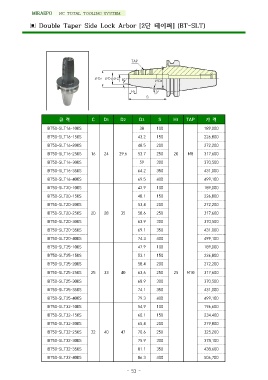

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ Double Taper Side Lock Arbor [2단 테이퍼] (BT-SLT)
TAP
∅D2 ∅D1 ∅C 8° ∅D3
H1
3°
S
규격 C D1 D2 D3 S H1 TAP 가격
BT50-SLT16-100S 38 100 189,000
BT50-SLT16-150S 43.2 150 226,800
BT50-SLT16-200S 48.5 200 272,200
BT50-SLT16-250S 16 24 29.6 53.7 250 20 M8 317,600
BT50-SLT16-300S 59 300 370,500
BT50-SLT16-350S 64.2 350 431,000
BT50-SLT16-400S 69.5 400 499,100
BT50-SLT20-100S 42.9 100 189,000
BT50-SLT20-150S 48.1 150 226,800
BT50-SLT20-200S 53.4 200 272,200
BT50-SLT20-250S 20 28 35 58.6 250 317,600
BT50-SLT20-300S 63.9 300 370,500
BT50-SLT20-350S 69.1 350 431,000
BT50-SLT20-400S 74.3 400 499,100
BT50-SLT25-100S 47.9 100 189,000
BT50-SLT25-150S 53.1 150 226,800
BT50-SLT25-200S 58.4 200 272,200
BT50-SLT25-250S 25 33 40 63.6 250 25 M10 317,600
BT50-SLT25-300S 68.9 300 370,500
BT50-SLT25-350S 74.1 350 431,000
BT50-SLT25-400S 79.3 400 499,100
BT50-SLT32-100S 54.9 100 196,600
BT50-SLT32-150S 60.1 150 234,400
BT50-SLT32-200S 65.4 200 279,800
BT50-SLT32-250S 32 40 47 70.6 250 325,200
BT50-SLT32-300S 75.9 300 378,100
BT50-SLT32-350S 81.1 350 438,600
BT50-SLT32-400S 86.3 400 506,700
