MIRAEPO NC TOTAL TOOLING SYSTEM

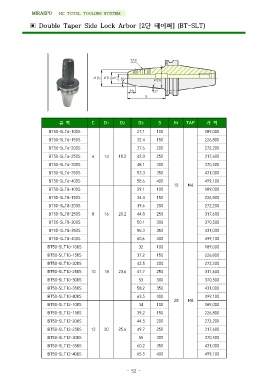

▣ Double Taper Side Lock Arbor [2단 테이퍼] (BT-SLT)
TAP
∅D2 ∅D1 ∅C 8° ∅D3
H1
3°
S
규격 C D1 D2 D3 S H1 TAP 가 격
BT50-SLT6-100S 27.1 100 189,000
BT50-SLT6-150S 32.4 150 226,800
BT50-SLT6-200S 37.6 200 272,200
BT50-SLT6-250S 6 14 18.2 42.8 250 317,600
BT50-SLT6-300S 48.1 300 370,500
BT50-SLT6-350S 53.3 350 431,000
BT50-SLT6-400S 58.6 400 499,100
BT50-SLT8-100S
15 M6
29.1 100 189,000
BT50-SLT8-150S 34.4 150 226,800
BT50-SLT8-200S 39.6 200 272,200
BT50-SLT8-250S 8 16 20.2 44.8 250 317,600
BT50-SLT8-300S 50.1 300 370,500
BT50-SLT8-350S 55.3 350 431,000
BT50-SLT8-400S 60.6 400 499,100
BT50-SLT10-100S 32 100 189,000
BT50-SLT10-150S 37.2 150 226,800
BT50-SLT10-200S 42.5 200 272,200
BT50-SLT10-250S 10 18 23.6 47.7 250 317,600
BT50-SLT10-300S 53 300 370,500
BT50-SLT10-350S 58.2 350 431,000
BT50-SLT10-400S 63.5 400 499,100
BT50-SLT12-100S
20 M8
34 100 189,000
BT50-SLT12-150S 39.2 150 226,800
BT50-SLT12-200S 44.5 200 272,200
BT50-SLT12-250S 12 20 25.6 49.7 250 317,600
BT50-SLT12-300S 55 300 370,500
BT50-SLT12-350S 60.2 350 431,000
BT50-SLT12-400S 65.5 400 499,100
- 52 -
