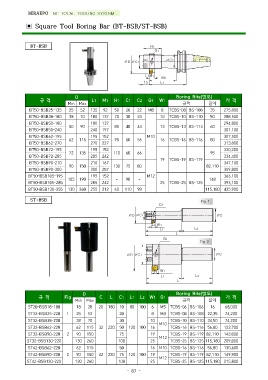

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Square Tool Boring Bar (BT-BSB/ST-BSB)

BT-BSB                                          H1
                                                   G1
                                       ∅D ∅C1
                                                             ∅C2

                                                 □ W1  M1
                                                15     L1

규격                    D L1 M1 H1 C1 C2 G1 W1                      Boring Bite(별도)                    가격
                 Min Max                                              규격 길이

BT50-BSB25-135 25 52 135 92 50 20 22 M8 8 TCBS-08 BS-108 35 275,800

BT50-BSB38-180 38 70 180 137 70 30 33                  10 TCBS-10 BS-110 50 288,500

BT50-BSB50-180   50 90    180 137  85 40 44            13 TCBS-13 BS-113 60                          294,800
                                                                                                     301,100
BT50-BSB50-240            240 197

BT50-BSB62-195   62 115   195 152  95 50 56     M10    16 TCBS-16 BS-116 80                          307,500
                                                                                                     313,800
BT50-BSB62-270            270 227

BT50-BSB72-195   72 135   195 152  110 60  66                                                         320,200
BT50-BSB72-285                             80                                               95
BT50-BSB90-210            285 242
BT50-BSB90-300                                                                                        334,400
                 90 150   210 167  130 75              19 TCBS-19 BS-119

                          300 257                                                                     347,100
                                                                                         82,110

                                                                                                      359,800

BT50-BSB105-195  105 190  195 152  - 90 -       M12                       140                        366,100

BT50-BSB105-285           285 242                      25 TCBS-25 BS-125                             393,100

BT50-BSB130-255 130 260 255 212 60 110 98                                 115,180 435,900

ST-BSB                                                                                    Fig 1
                                                       G1

                                        ∅D ∅C1                                         ∅C
                                                                     L2
                                                □ W1              L
                                                      L1                 Fig 2

                                                         G1

                                        ∅D ∅C1                                                   ∅C

                                                       □ W1          L2
                                                            L1

                                                                  L

규격               Fig D    C        L C1 L1 L2 W1 G1               Boring Bite(별도)                    가격
                 Min Max                                              규격 길이

ST20-BSB18-180   18 28 20 180 10 80 100 6 M5 TCBS-06 BS-106 16                                       68,000

ST32-BSB25-220 1 25 52 20 8 M8 TCBS-08 BS-108 22,35 74,200

ST32-BSB38-220   38 70 30 10 TCBS-10 BS-110 34,50 74,200
ST32-BSB62-220                                         M10
                 62 115 32 220 50 120 100 16                    TCBS-16 BS-116 56,80 123,700

ST32-BSB90-220 2 90 150 75 19 TCBS-19 BS-119 82,110 143,000
                                                       M12
ST32-BSB130-220  130 260           108          25 TCBS-25 BS-125 115,180 209,000

ST42-BSB62-220   62 115            50           16 M10 TCBS-16 BS-116 56,80 130,600

ST42-BSB90-220 2 90 150 42 220 75 120 100 19           M12      TCBS-19 BS-119 82,110 149,800

ST42-BSB130-220  130 260           108          25 TCBS-25 BS-125 115,180 215,800

                                        - 87 -
