MIRAEPO NC TOTAL TOOLING SYSTEM

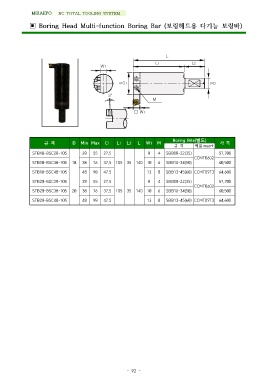

▣ Boring Head Multi-function Boring Bar (보링헤드용 다기능 보링바)
L L2
W1 L1 ∅D
∅C1
3°
M
□ W1
규격 D Min Max C1 L1 L2 L W1 M Boring Bite(별도) 가격
규격 적용insert
STB18-BSC28-105 28 55 27.5 8 4 SBB08-22(35) 57,700
CCMT0602
STB18-BSC38-105 18 38 76 37.5 105 35 140 10 6 SBB10-34(50) 60,500
STB18-BSC48-105 48 98 47.5 13 8 SBB13-45(60) CCMT09T3 64,600
STB20-BSC28-105 28 55 27.5 8 4 SBB08-22(35) 57,700
CCMT0602
STB20-BSC38-105 20 38 76 37.5 105 35 140 10 6 SBB10-34(50) 60,500
STB20-BSC48-105 48 98 47.5 13 8 SBB13-45(60) CCMT09T3 64,600
