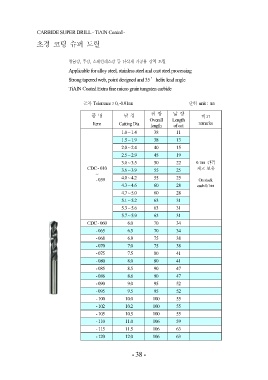

CARBIDE SUPER DRILL - TiAlN Coated -

초경 코팅 슈퍼 드릴

합금강, 주강, 스테인레스강 등 난삭재 가공용 강력 드릴

Applicable for alloy steel, stainless steel and cast steel processing
Strong tapered web, point designed and 35°helix lead angle
TiAlN Coated Extra fine micro grain tungsten carbide

공차 Tolerance :+0, -0.01㎜ 단위 unit : ㎜

품명 날경 전장 날장 비고
Item Overall Length remarks
Cutting Dia length of cut
CDC - 010 0.1㎜ 간격
~ 1.0 ~ 1.4 38 11 재고 보유
- 059 1.5 ~ 1.9 38 13 On stock
2.0 ~ 2.4 40 15 each 0.1㎜
CDC - 060 2.5 ~ 2.9 45 19
- 065 3.0 ~ 3.5 50 22
- 068 3.6 ~ 3.9 55 25
- 070 4.0 ~ 4.2 55 25
- 075 4.3 ~ 4.6 60 28
- 080 4.7 ~ 5.0 60 28
- 085 5.1 ~ 5.2 63 31
- 086 5.3 ~ 5.6 63 31
- 090 5.7 ~ 5.9 63 31
- 095 70 34
- 100 6.0 70 34
- 102 6.5 75 38
- 105 6.8 75 38
- 110 7.0 80 41
- 115 7.5 80 41
- 120 8.0 90 47
8.5 90 47
8.6 95 52
9.0 95 52
9.5 100 55
10.0 100 55
10.2 100 55
10.5 106 59
11.0 106 63
11.5 106 63
12.0
