P. 38

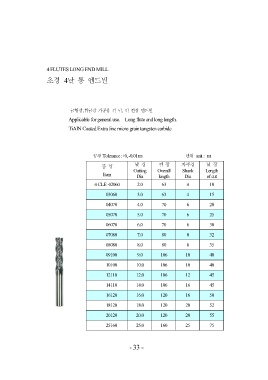

4 FLUTES LONG END MILL
초경 4날 롱 엔드밀
금형강,합금강 가공용 긴 날, 긴 전장 엔드밀
Applicable for general use. Long flute and long length.
TiAlN Coated Extra fine micro grain tungsten carbide
공차 Tolerance :+0, -0.01㎜ 단위 unit : ㎜
품명 날경 전장 자루경 날장
Item Overall
Cutting length Shank Length
Dia Dia of cut
63
4 CLE -02060 2.0 63 4 10
70
03060 3.0 70 4 15
70
04070 4.0 80 6 20
80
05070 5.0 106 6 25
106
06070 6.0 106 6 30
106
07080 7.0 120 8 32
120
08080 8.0 120 8 35
160
09100 9.0 10 40
10100 10.0 10 40
12110 12.0 12 45
14110 14.0 16 45
16120 16.0 16 50
18120 18.0 20 52
20120 20.0 20 55
25160 25.0 25 75
- 33 -
