P. 35

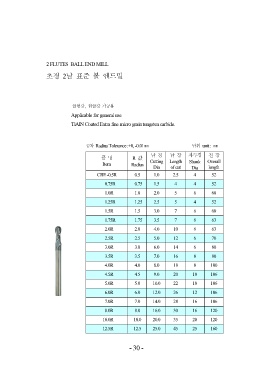

2 FLUTES BALL END MILL
초경 2날 표준 볼 엔드밀
금형강, 합금강 가공용
Applicable for general use
TiAlN Coated Extra fine micro grain tungsten carbide.
공차 Radius Tolerance :+0, -0.01㎜ 단위 unit : ㎜
품명 R값 날경 날장 자루경 전장
Item Radius Cutting Length Shank Overall
of cut Dia length
CBE -0.5R 0.5 Dia
2.5 4 52
1.0
0.75R 0.75 1.5 4 4 52
1.0R 1.0 2.0 5 6 60
1.25R 1.25 2.5 5 4 52
1.5R 1.5 3.0 7 6 60
1.75R 1.75 3.5 7 6 63
2.0R 2.0 4.0 10 6 63
2.5R 2.5 5.0 12 6 70
3.0R 3.0 6.0 14 6 80
3.5R 3.5 7.0 16 8 80
4.0R 4.0 8.0 18 8 100
4.5R 4.5 9.0 20 10 106
5.0R 5.0 10.0 22 10 106
6.0R 6.0 12.0 26 12 106
7.0R 7.0 14.0 28 16 106
8.0R 8.0 16.0 30 16 120
10.0R 10.0 20.0 35 20 120
12.5R 12.5 25.0 45 25 160
- 30 -
