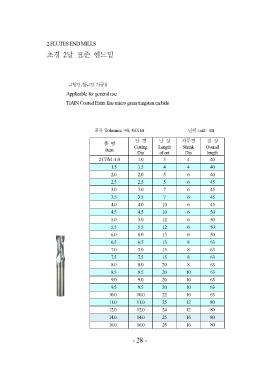

2 FLUTES END MILLS

초경 2날 표준 엔드밀

금형강,합금강 가공용

Applicable for general use
TiAlN Coated Extra fine micro grain tungsten carbide

공차 Tolerance :+0, -0.01㎜ 단위 unit : ㎜

품명 날경 날장 자루경 전장
Item Cutting Length Shank Overall
of cut Dia length
2 CEM -1.0 Dia
1.5 1.0 3 4 40
2.0 1.5 4 4 40
2.5 2.0 5 6 40
3.0 2.5 5 6 45
3.5 3.0 7 6 45
4.0 3.5 7 6 45
4.5 4.0 10 6 45
5.0 4.5 10 6 50
5.5 5.0 12 6 50
6.0 5.5 12 6 50
6.5 6.0 13 6 50
7.0 6.5 13 8 63
7.5 7.0 15 8 63
8.0 7.5 15 8 63
8.5 8.0 20 8 63
9.0 8.5 20 10 63
9.5 9.0 20 10 63
10.0 9.5 20 10 63
11.0 10.0 22 10 63
12.0 11.0 25 12 80
14.0 12.0 24 12 80
16.0 14.0 25 16 80
16.0 26 16 80

- 28 -
