P. 29

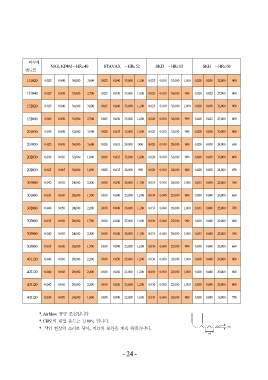

피삭재 NAK, KP4M ~ HRc 40 STAVAX ~ HRc 52 SKD ~ HRc 62 SKH ~ HRc 68
엔드밀
151020 0.025 0.040 38,000 3,000 0.025 0.040 35,000 1,100 0.025 0.030 35,000 1,000 0.020 0.030 32,000 900
151040 0.025 0.030 35,000 2,700 0.025 0.030 33,000 1,000 0.020 0.030 30,000 900 0.020 0.025 27,000 800
152020 0.025 0.040 38,000 3,000 0.025 0.040 35,000 1,100 0.025 0.030 35,000 1,000 0.020 0.030 32,000 900
152040 0.025 0.030 35,000 2,700 0.025 0.030 33,000 1,000 0.020 0.030 30,000 900 0.020 0.025 27,000 800
201030 0.030 0.050 32,000 1,900 0.020 0.035 32,000 1,000 0.020 0.030 32,000 900 0.020 0.030 30,000 800
201050 0.025 0.045 30,000 1,600 0.020 0.035 28,000 900 0.020 0.030 28,000 800 0.020 0.030 24,000 650
202030 0.030 0.050 32,000 1,900 0.020 0.035 32,000 1,000 0.020 0.030 32,000 900 0.020 0.030 30,000 800
202050 0.025 0.045 30,000 1,600 0.020 0.035 28,000 900 0.020 0.030 28,000 800 0.020 0.030 24,000 650
301060 0.040 0.050 24,000 2,200 0.030 0.040 28,000 1,100 0.033 0.040 28,000 1,000 0.033 0.040 22,000 760
301080 0.035 0.060 20,000 1,700 0.030 0.040 25,000 1,000 0.030 0.040 25,000 900 0.030 0.040 20,000 660
302060 0.040 0.050 24,000 2,200 0.030 0.040 28,000 1,100 0.033 0.040 28,000 1,000 0.033 0.040 22,000 760
302080 0.035 0.060 20,000 1,700 0.030 0.040 25,000 1,000 0.030 0.040 25,000 900 0.030 0.040 20,000 660
303060 0.040 0.050 24,000 2,200 0.030 0.040 28,000 1,100 0.033 0.040 28,000 1,000 0.033 0.040 22,000 760
303080 0.035 0.060 20,000 1,700 0.030 0.040 25,000 1,000 0.030 0.040 25,000 900 0.030 0.040 20,000 660
401120 0.040 0.060 28,000 2,200 0.030 0.050 25,000 1,200 0.030 0.050 22,000 1,000 0.030 0.040 20,000 800
402120 0.040 0.060 28,000 2,200 0.030 0.050 25,000 1,200 0.030 0.050 22,000 1,000 0.030 0.040 20,000 800
403120 0.040 0.060 28,000 2,200 0.030 0.050 25,000 1,200 0.030 0.050 22,000 1,000 0.030 0.040 20,000 800
405120 0.030 0.050 24,000 1,800 0.030 0.040 22,000 1,000 0.030 0.040 20,000 800 0.020 0.040 16,000 750
*. Air blow 공급 조건입니다.
*. CBN 의 내열 온도는 1,100°c 입니다.
*. 작업 현장의 소리를 담아, 자료의 보완을 계속 하겠습니다.
- 24 -
