P. 37

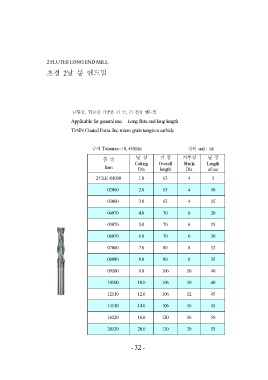

2 FLUTES LONG END MILL
초경 2날 롱 엔드밀
금형강, 합금강 가공용 긴 날, 긴 전장 엔드밀
Applicable for general use. Long flute and long length
TiAlN Coated Extra fine micro grain tungsten carbide
공차 Tolerance :+0, -0.01㎜ 단위 unit : ㎜
품명 날경 전장 자루경 날장
Item Cutting Overall Shank Length
length Dia of cut
Dia
63
2 CLE -01060 1.0 63 45
63
02060 2.0 70 4 10
70
03060 3.0 70 4 15
80
04070 4.0 80 6 20
106
05070 5.0 106 6 25
106
06070 6.0 106 6 30
120
07080 7.0 120 8 32
08080 8.0 8 35
09100 9.0 10 40
10100 10.0 10 40
12110 12.0 12 45
14110 14.0 16 45
16120 16.0 16 50
20120 20.0 20 55
- 32 -
