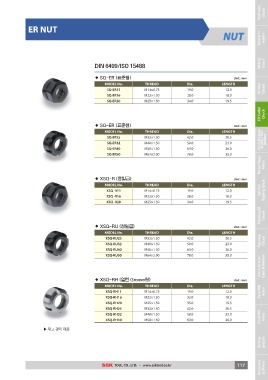

Page 117 - SSK

Hydraulic
Chuck

ER NUT NUT Shrink Fit
Holder

DIN 6499/ISO 15488 Milling
Chuck

◆ SQ-ER (표준형) Unit : mm

MODEL No. Thread Dia. Length SK Slim
Chuck
SQ-ER11 M14×0.75 19.0 12.0

SQ-ER16 M22×1.50 28.0 18.0

SQ-ER20 M25×1.50 34.0 19.5

ER Collet
Chuck

◆ SQ-ER (표준형) Unit : mm

MODEL No. Thread Dia. Length N&COHDtroilhlledreCrThsouoclk

SQ-ER25 M32×1.50 42.0 20.5

SQ-ER32 M40×1.50 50.0 23.0

SQ-ER40 M50×1.50 63.0 26.0

SQ-ER50 M64×2.00 78.0 35.0 Morse Taper

Arbor

◆ XSQ-R (정밀급) Unit : mm Tapping Chuck

MODEL No. Thread Dia. Length Synchro

XSQ -R11 M14×0.75 19.0 12.0

XSQ -R16 M22×1.50 28.0 18.0

XSQ -R20 M25×1.50 34.0 19.5

◆ XSQ-RU (정밀급) Tapping ER
Chuck

Unit : mm

MODEL No. Thread Dia. Length Tapping
Chuck
XSQ-RU25 M32×1.50 42.0 20.5

XSQ-RU32 M40×1.50 50.0 23.0

XSQ-RU40 M50×1.50 63.0 26.0

XSQ-RU50 M64×2.00 78.0 35.0 Side Lock Arbor
& End Mill Holder
◆ XSQ-RH (열린 Groove형)
Unit : mm

MODEL No. Thread Dia. Length Face Mill
Arbor
XSQ-RH11 M14×0.75 19.0 12.0

XSQ-RH16 M22×1.50 32.0 18.0

XSQ-RH20 M25×1.50 35.0 19.5

XSQ-RH25 M32×1.50 42.0 20.5 Shell Mill
Arbor
XSQ-RH32 M40×1.50 50.0 23.0

XSQ-RH40 M50×1.50 63.0 26.0

▶ 재고 관리 제품

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 117 Accessory
