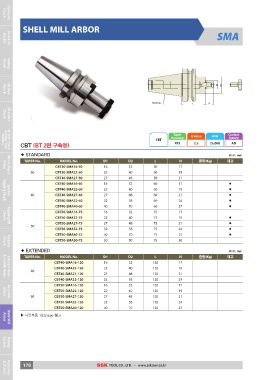

Shrink Fit SHELL MILL ARBOR SMA
Holder

Milling
Chuck

SK Slim D1
Chuck D2

TAPER No. LH

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk CBT Taper G Value RPM Coolant
Accuracy System

CBT (BT 2면 구속형) AT3 2.5 25,000 AD

Morse Taper ◆ STANDARD Unit : mm

Arbor TAPER No. MODEL No. D1 D2 L H 중량(Kg) 재고

CBT30-SMA16-50 16 32 50 17

30 CBT30-SMA22-50 22 40 50 19

Tapping Chuck CBT30-SMA27-50 27 48 50 21

Synchro CBT40-SMA16-60 16 32 60 17 ●

CBT40-SMA22-60 22 40 60 19 ●

40 CBT40-SMA27-60 27 48 60 21 ●

CBT40-SMA32-60 32 58 60 24 ●

Tapping ER CBT40-SMA40-60 40 70 60 27 ●
Chuck
CBT50-SMA16-75 16 32 75 17

CBT50-SMA22-75 22 40 75 19 ●

50 CBT50-SMA27-75 27 48 75 21 ●
CBT50-SMA32-75 32 58 75 24 ●

Tapping CBT50-SMA40-75 40 70 75 27 ●
Chuck
CBT50-SMA50-75 50 90 75 30

◆ EXTENDED Unit : mm

Side Lock Arbor TAPER No. MODEL No. D1 D2 L H 중량(Kg) 재고
& End Mill Holder
CBT40-SMA16-120 16 32 120 17

40 CBT40-SMA22-120 22 40 120 19
CBT40-SMA27-120 27 48 120 21

CBT40-SMA32-120 32 58 120 24

Face Mill CBT50-SMA16-120 16 32 120 17
Arbor
CBT50-SMA22-120 22 40 120 19

50 CBT50-SMA27-120 27 48 120 21

CBT50-SMA32-120 32 58 120 24

Shell Mill CBT50-SMA40-120 40 70 120 27
Arbor
▶ 사용부품 182page 참고

Boring
System

Accessory 178 TOOL CO., LTD. www.ssktool.co.kr
