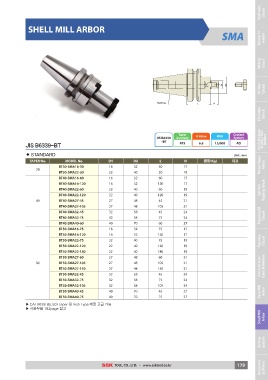

Page 179 - SSK

Hydraulic
Chuck

SHELL MILL ARBOR SMA Shrink Fit
Holder

Milling
Chuck

D1 SK Slim
D2 Chuck

TAPER No. LH

ER Collet
Chuck

JIS B6339-BT JIS B6339 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
- BT Accuracy 6.3 15,000 System

AT3 AD

◆ STANDARD Unit : mm Morse Taper

TAPER No. MODEL No. D1 D2 L H 중량(Kg) 재고 Arbor
16
30 BT30-SMA16-30 22 32 30 17
BT30-SMA22-30 16
16 40 30 19
22
BT40-SMA16-60 22 32 60 17 Tapping Chuck
27
BT40-SMA16-120 27 32 120 17 Synchro
32
BT40-SMA22-60 32 40 60 19
40
BT40-SMA22-120 16 40 120 19
16
40 BT40-SMA27-45 22 48 45 21
22
BT40-SMA27-105 22 48 105 21 Tapping ER
27 Chuck
BT40-SMA32-45 27 58 45 24
27
BT40-SMA32-75 32 58 75 24
32
BT40-SMA40-60 32 70 60 27
40
BT50-SMA16-75 40 32 75 17

BT50-SMA16-120 32 120 17 Tapping
Chuck
BT50-SMA22-75 40 75 19

BT50-SMA22-120 40 120 19

BT50-SMA22-180 40 180 19

BT50-SMA27-60 48 60 21 Side Lock Arbor
& End Mill Holder
50 BT50-SMA27-105 48 105 21

BT50-SMA27-150 48 150 21

BT50-SMA32-45 58 45 24

BT50-SMA32-75 58 75 24

BT50-SMA32-105 58 105 24 Face Mill
Arbor
BT50-SMA40-45 70 45 27

BT50-SMA40-75 70 75 27

▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능 Shell Mill
▶ 사용부품 182page 참고 Arbor

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 179 Accessory
