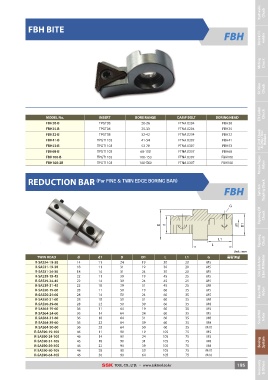

Page 195 - SSK

Hydraulic
Chuck

FBH BITE FBH Shrink Fit
Holder

Milling
Chuck

SK Slim
Chuck

MODEL No. INSERT BORE RANGE CAMP BOLT BORING HEAD ER Collet
FBH20-B TPGT08 20-26 FTNA 0204 FBHG20 Chuck
FBH25-B TPGT08 25-33 FTNA 0204 FBH25
FBH32-B TPGT08 32-42 DD FTNA 0204 FBH32 d1 N&COHDtroilhlledreCrThsouoclk
FBH41-B TPGT1103 41-54 dd FTNA 0307 FBH41 d1
FBH53-B TPGT1103 53-70 FTNA 0307 FBH53 D1 Morse TaperArbor
FBH68-B TPGT1103 68-100 FTNA 0307 FBH68
FBH100-B TPGT1103 FTNA 0307
FBH100-2B TPGT1103 100-153 FTNA 0307 L FBH100
100-560 FBH100

REDUCTION BAR (For FINE & TWIN EDGE BORING BAR) FBH Synchro Tapping Chuck

G Tapping ER
Chuck

L1 Tapping
Chuck
L

Unit : mm

TWIN HEAD d d1 D D1 L L1 G 중량(Kg) Side Lock Arbor
& End Mill Holder
R-SAS24-19-30 14 11 24 19 30 20 M5

R-SAS31-19-30 18 11 31 19 30 20 M5

R-SAS31-24-30 18 14 31 24 30 20 M5

R-SAS39-19-45 22 11 39 19 45 25 M5

R-SAS39-24-45 22 14 39 24 45 25 M5

R-SAS39-31-45 22 18 39 31 45 25 M8 Face Mill
Arbor
R-SAS50-19-60 28 11 50 19 60 35 M5

R-SAS50-24-60 28 14 50 24 60 35 M5

R-SAS50-31-60 28 18 50 31 60 35 M8

R-SAS50-39-60 28 22 50 39 60 35 M8

R-SAS64-19-60 36 11 64 19 60 35 M5 Shell Mill
Arbor
R-SAS64-24-60 36 14 64 24 60 35 M5

R-SAS64-31-60 36 18 64 31 60 35 M8

R-SAS64-39-60 36 22 64 39 60 35 M8

R-SAS64-50-60 36 28 64 50 60 35 M10

R-SAS90-19-105 46 11 90 19 105 75 M5

R-SAS90-24-105 46 14 90 24 105 75 M5 Boring
System
R-SAS90-31-105 46 18 90 31 105 75 M8

R-SAS90-39-105 46 22 90 39 105 75 M8

R-SAS90-50-105 46 28 90 50 105 75 M10

R-SAS90-64-105 46 36 90 64 105 75 M16

TOOL CO., LTD. www.ssktool.co.kr 195 Accessory
