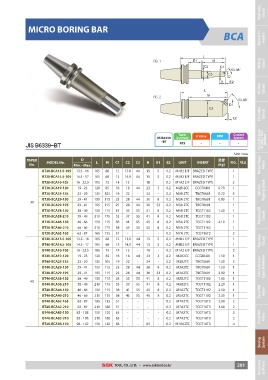

Page 201 - SSK

Hydraulic
Chuck

MICRO BORING BAR BCA Shrink Fit
Holder

FIG. 1 L M Milling
FIG. 2 E1 Chuck

C2 C1
C3 53.08˚

0 60 D

H E2 SK Slim
Chuck
L
M 53.08˚
D
C2
ER Collet
E2 Chuck

0 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
JIS B6339-BT JIS B6339 Accuracy System
- BT AT3
- - -

Unit : mm Morse Taper

TAPER MODEL No. D L M C1 C2 C3 H E1 E2 UNIT INSERT 중량 FIG. 재고 Arbor
No. Min. - Max. (Kg)

BT30-BCA13.5-105 13.5 - 16 105 68 12 13.0 44 15 5 0.2 M1B2 E/F BRAZED TYPE 1

BT30-BCA14.5-105 14.5 - 17 105 68 13 14.0 44 15 5 0.2 M1B2 E/F BRAZED TYPE 1

BT30-BCA16-105 16 - 22.5 105 73 14 15 - 18 - 0.2 M1A2 E/F BRAZED TYPE 3 Synchro Tapping Chuck

BT30-BCA19-120 19 - 23 120 85 16 18 44 23 3 0.2 M2B 2CC CCGT0401 0.70 1

BT30-BCA23-135 23 - 29 135 105 19 22 - 24 - 0.2 M3B 2TC TBGT0601 0.70 3

30 BT30-BCA29-150 29 - 41 150 115 25 28 44 30 8 0.2 M3A 2TC TBGT0601 0.90 1
BT30-BCA29-195
29 - 41 195 115 25 28 44 30 53 0.2 M3A 2TC TBGT0601 1 Tapping ER
Chuck
BT30-BCA38-150 38 - 49 150 115 33 35 55 41 8 0.2 M5B 2TC TCGT1102 1.40 1

BT30-BCA38-210 38 - 49 210 175 33 37 55 41 8 0.2 M5B 2TC TCGT1102 1

BT30-BCA46-150 46 - 66 150 115 38 41 55 45 8 0.2 M5A 2TC TCGT1102 2.10 1

BT30-BCA46-210 46 - 66 210 175 38 45 55 45 8 0.2 M5A 2TC TCGT1102 1

BT30-BCA62-165 62 - 87 165 135 51 - - - - 0.2 M7A 2TC TCGT16T3 2 Tapping
Chuck
BT40-BCA13.5-105 13.5 - 16 105 68 12 13.0 44 15 5 0.2 M1B2 E/F BRAZED TYPE 1

BT40-BCA14.5-105 14.5 - 17 105 68 13 14.0 44 15 5 0.2 M1B2 E/F BRAZED TYPE 1

BT40-BCA16-105 16 - 22.5 105 73 14 15 - 18 - 0.2 M1A2 E/F BRAZED TYPE 3

BT40-BCA19-120 19 - 23 120 85 16 18 44 23 3 0.2 M2B2CC CCGT0401 1.50 1 Side Lock Arbor
& End Mill Holder
BT40-BCA23-135 23 - 29 135 105 19 22 - 24 - 0.2 M3B2TC TBGT0601 1.50 3

BT40-BCA29-150 29 - 41 150 115 25 28 44 30 8 0.2 M3A2TC TBGT0601 1.50 1

BT40-BCA29-195 29 - 41 195 115 25 28 44 30 53 0.2 M3A2TC TBGT0601 2.00 1

40 BT40-BCA38-150 38 - 49 150 115 33 35 55 41 8 0.2 M5B2TC TCGT1102 1.80 1
BT40-BCA38-210 38 - 49 210 175 33 37 55 41 8 0.2 M5B2TC TCGT1102 2.20 1
Face Mill
BT40-BCA46-150 46 - 66 150 115 38 41 55 45 8 0.2 M5A2TC TCGT1102 2.10 1 Arbor

BT40-BCA46-210 46 - 66 210 175 38 45 55 45 8 0.2 M5A2TC TCGT1102 2.30 1

BT40-BCA62-165 62 - 87 165 135 51 - - - - 0.2 M7A2TC TCGT16T3 2.90 2

BT40-BCA62-210 62 - 87 210 180 51 - - - - 0.2 M7A2TC TCGT16T3 3.60 2

BT40-BCA83-150 83 - 108 150 120 63 - - - - 0.2 M7A2TC TCGT16T3 2 Shell Mill
Arbor
BT40-BCA83-210 83 - 108 210 180 63 - - - - 0.2 M7A2TC TCGT16T3 2

BT40-BCA98-150 98 - 142 150 120 83 - - 85 - 0.2 M10A2TC TCGT16T3 4

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 201 Accessory
