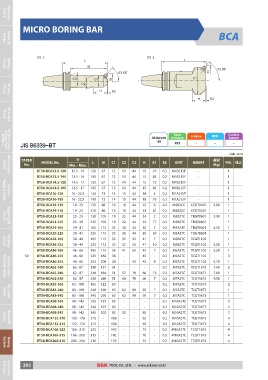

Shrink Fit MICRO BORING BAR BCA
Holder

Milling FIG. 3 L FIG. 4 L
Chuck M C1
53.08˚
53.08˚ D
D
SK Slim C3 C1
Chuck C2 H E2

H E2

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk Taper G Value RPM Coolant
JIS B6339 Accuracy System
- BT AT3
JIS B6339-BT - - -

Morse Taper Unit : mm

Arbor TAPER MODEL No. D L M C1 C2 C3 H E1 E2 UNIT INSERT 중량 FIG. 재고
No. Min. - Max. (Kg)

BT50-BCA13.5-120 13.5 - 16 120 67 12 13 44 15 10 0.2 M1B2 E/F - 1

BT50-BCA13.5-195 13.5 - 16 195 67 12 13 44 15 85 0.2 M1B2 E/F - 1

Tapping ChuckSynchro BT50-BCA14.5-120 14.5 - 17 120 67 13 14 44 15 10 0.2 M1B2 E/F - 1

BT50-BCA14.5-195 14.5 - 17 195 67 13 14 44 15 85 0.2 M1B2 E/F - 1

BT50-BCA16-120 16 - 22.5 120 73 14 15 44 18 4 0.2 M1A2 E/F - 1

BT50-BCA16-195 16 - 22.5 195 73 14 15 44 18 79 0.2 M1A2 E/F - 1

Tapping ER BT50-BCA19-135 19 - 23 135 86 16 18 44 23 6 0.2 M2B2CC CCGT0401 3.80 1
Chuck
BT50-BCA19-210 19 - 23 210 86 16 18 44 23 81 0.2 M2B2CC CCGT0401 1

BT50-BCA23-150 23 - 29 150 105 19 22 44 24 2 0.2 M3B2TC TBGT0601 3.90 1

BT50-BCA23-225 23 - 29 225 105 19 22 44 24 77 0.2 M3B2TC TBGT0601 1

BT50-BCA29-165 29 - 41 165 115 25 28 44 30 7 0.2 M3A2TC TBGT0601 4.50 1

Tapping BT50-BCA29-225 29 - 41 225 115 25 28 44 30 67 0.2 M3A2TC TBGT0601 1
Chuck
BT50-BCA38-165 38 - 49 165 115 33 35 55 41 7 0.2 M5B2TC TCGT1102 1

BT50-BCA38-225 38 - 49 225 172 33 37 55 41 10 0.2 M5B2TC TCGT1102 5.00 1

BT50-BCA46-165 46 - 66 165 115 38 41 55 45 7 0.2 M5A2TC TCGT1102 5.20 1

Side Lock Arbor 50 BT50-BCA46-225 46 - 66 225 182 38 - - 45 - 0.2 M5A2TC TCGT1102 3
& End Mill Holder
BT50-BCA46-255 46 - 66 255 206 38 - 55 45 6 0.2 M5A2TC TCGT1102 5.70 1

BT50-BCA62-180 62 - 87 180 137 51 - - - - 0.2 M7A2TC TCGT16T3 7.00 2

BT50-BCA62-240 62 - 87 240 184 51 57 70 60 13 0.2 M7A2TC TCGT16T3 7.60 1

BT50-BCA62-330 62 - 87 330 280 51 60 70 60 7 0.2 M7A2TC TCGT16T3 9.50 1

Face Mill BT50-BCA83-165 83 - 108 165 122 63 - - - - 0.2 M7A2TC TCGT16T3 2
Arbor
BT50-BCA83-240 83 - 108 240 190 63 62 90 95 7 0.2 M7A2TC TCGT16T3 1

BT50-BCA83-345 83 - 108 345 295 63 62 90 95 7 0.2 M7A2TC TCGT16T3 1

BT50-BCA98-165 98 - 142 165 122 83 - - - - 0.2 M10A2TC TCGT16T3 2

BT50-BCA98-240 98 - 142 240 197 83 - - - - 0.2 M10A2TC TCGT16T3 2

Shell Mill BT50-BCA98-345 98 - 142 345 302 83 92 - 85 - 0.2 M10A2TC TCGT16T3 3
Arbor
BT50-BCA132-210 132 - 176 210 - 108 - - 65 - 0.2 M10A2TC TCGT16T3 4

BT50-BCA132-315 132 - 176 315 - 108 - - 65 - 0.2 M10A2TC TCGT16T3 4

BT50-BCA166-225 166 - 210 225 - 142 - - 70 - 0.2 M10A2TC TCGT16T3 4

Boring BT50-BCA166-315 166 - 210 315 - 142 - - 70 - 0.2 M10A2TC TCGT16T3 4
System
BT50-BCA200-210 200 - 244 210 - 176 - - 75 - 0.2 M10A2TC TCGT16T3 4

Accessory 202 TOOL CO., LTD. www.ssktool.co.kr
