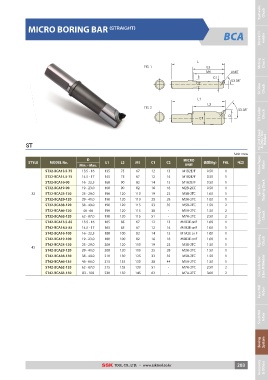

MICRO BORING BAR (STRAIGHT) BCA Shrink Fit
Holder
FIG. 1
FIG. 2 L Milling
L2 Chuck
M1
UNIT
C1 53.08˚
C2
SK Slim
Chuck

L1 53.08˚ ER Collet
L2 D Chuck

C1

ST N&COHDtroilhlledreCrThsouoclk

Unit : mm Morse Taper

STYLE MODEL No. D L1 L2 M1 C1 C2 MICRO 중량(Kg) FIG. 재고 Arbor
Min. - Max. UNIT

ST32-BCA13.5-75 13.5 - 16 135 75 67 12 13 M1B2E/F 0.50 1

ST32-BCA14.5-75 14.5 - 17 145 75 67 12 14 M1B2E/F 0.50 1

ST32-BCA16-90 16 - 22.5 160 90 82 14 15 M1A2E/F 0.50 1 Synchro Tapping Chuck

ST32-BCA19-90 19 - 23.0 160 90 82 16 18 M2B-2CC 0.50 1

32 ST32-BCA23-120 23 - 29.0 190 120 110 19 22 M3B-2TC 1.00 1

ST32-BCA29-120 29 - 41.0 190 120 110 25 28 M3A-2TC 1.00 1

ST32-BCA38-120 38 - 49.0 190 120 115 33 35 M5B-2TC 1.50 2 Tapping ER
Chuck
ST32-BCA46-120 46 - 66 190 120 115 38 - M5A-2TC 1.50 2

ST32-BCA62-120 62 - 87.0 190 120 115 51 - M7A-2TC 2.50 2

ST42-BCA13.5-85 13.5 - 16 165 85 67 12 13 M1B2E or F 1.00 1

ST42-BCA14.5-85 14.5 - 17 165 85 67 12 14 M1B2E or F 1.00 1

ST42-BCA16-100 16 - 22.5 180 100 82 14 15 M1A2E or F 1.00 1 Tapping
Chuck
ST42-BCA19-100 19 - 23.0 180 100 82 16 18 M2B2E or F 1.00 1

42 ST42-BCA23-120 23 - 29.0 200 120 110 19 22 M3B-2TC 1.50 1
ST42-BCA29-120 29 - 41.0 200 120 110 25 28 M3A-2TC 1.50 1

ST42-BCA38-130 38 - 49.0 210 130 125 33 35 M5B-2TC 1.50 1 Side Lock Arbor
& End Mill Holder
ST42-BCA46-135 46 - 66.0 215 135 130 38 44 M5A-2TC 1.50 1

ST42-BCA62-135 62 - 87.0 215 135 130 51 - M7A-2TC 2.50 2

ST42-BCA83-150 83 - 108 230 150 145 63 - M7A-2TC 3.00 2
