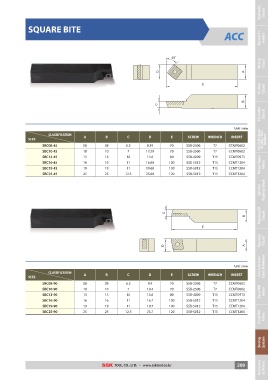

Page 209 - SSK

Hydraulic
Chuck

SQUARE BITE ACC Shrink Fit
Holder
45˚
Milling
E Chuck

CD BA SK Slim
Chuck

ER Collet
Chuck

Unit : mm N&COHDtroilhlledreCrThsouoclk

SIZE CLASSIFICATION A B C D E SCREW WRENCH INSERT

SBC08-45 08 08 6.3 8.39 70 SSB-2506 T7 CCMT0602
SBC10-45 10
SBC13-45 13 10 7 10.39 70 SSB-2506 T7 CCMT0602
SBC16-45 16
SBC19-45 19 13 10 13.6 80 SSB-4009 T15 CCMT09T3 Morse Taper
SBC25-45 25
16 11 16.68 100 SSB-5012 T15 CCMT1204 Arbor

19 11 19.68 100 SSB-5012 T15 CCMT1204

25 12.5 25.68 120 SSB-5012 T15 CCMT1204

Synchro Tapping Chuck

DC AB Tapping ER
Chuck

E

Tapping
Chuck

Unit : mm Side Lock Arbor
& End Mill Holder
SIZE CLASSIFICATION A B C D E SCREW WRENCH INSERT

SBC08-90 08 08 6.3 8.4 70 SSB-2506 T7 CCMT0602 Face Mill
SBC10-90 10 Arbor
SBC13-90 13 10 7 10.4 70 SSB-2506 T7 CCMT0602
SBC16-90 16
SBC19-90 19 13 10 13.6 80 SSB-4009 T15 CCMT09T3
SBC25-90 25
16 11 16.7 100 SSB-5012 T15 CCMT1204

19 11 19.7 100 SSB-5012 T15 CCMT1204

25 12.5 25.7 120 SSB-5012 T15 CCMT1204 Shell Mill
Arbor

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 209 Accessory
& Others
