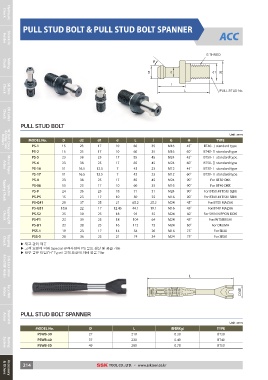

Shrink Fit PULL STUD BOLT & PULL STUD BOLT SPANNER ACC
Holder

G THRED

Milling
Chuck

SK Slim Dd d1 d2
Chuck PULL STUD No.
I
L

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk PULL STUD BOLT

Unit : mm

MODEL No. D d2 d1 d L l G Θ TYPE
PS-1
PS-2 15 23 17 10 60 35 M16 45˚ BT40- standard type
PS-5
PS-6 15 23 17 10 60 35 M16 60˚ BT40- standard type
PS-16
Morse Taper PS-17 23 38 25 17 85 45 M24 45˚ BT50- standard type
PS-0
Arbor PS-08 23 38 25 17 85 45 M24 60˚ BT50- standard type
PS-P
PS-P5 11 16.5 12.5 7 43 23 M12 45˚ BT30- standard type
PS-G41
PS-G51 11 16.5 12.5 7 43 23 M12 60˚ BT30- standard type
PS-S2
Tapping Chuck PS-F1 23 38 25 17 85 45 M24 90˚ For BT50 OKK
PS-B1
Synchro PSS-1 15 23 17 10 60 35 M16 90˚ For BT40 OKK
PSS-5
24 36 25 18 71 31 M24 90˚ For BT50 MITISUI SEIKI

15 23 17 10 50 25 M16 90˚ For BT40 MITISUI SEIKI

29 37 25 21 65.2 25.2 M24 45˚ For BT50 MAZAK

Tapping ER 18.8 22 17 12.45 44.1 19.1 M16 45˚ For BT40 MAZAK
Chuck
25 39 25 18 95 55 M24 60˚ For SHIN NIPPON KOKI

23 39 25 18 104 64 M24 45˚ For MITSUBISHI

22 38 25 16 112 72 M24 60˚ For OKUMA

19 23 17 14 54 26 M16 75˚ For SK40

Tapping 28 36 25 21 74 34 M24 75˚ For SK50
Chuck
▶ 재고 관리 제품
Side Lock Arbor ▶ 고객 요청에 의해 Special 규격사양의 PS 볼트 생산 및 공급 가능
& End Mill Holder ▶ 내부 급유 타입("H" Type) 고객 요청에 의해 공급 가능

L

Face Mill D+Ø,
Arbor

Shell Mill PULL STUD BOLT SPANNER
Arbor
Unit : mm

Boring MODEL No. D L 중량(Kg) TYPE
System PSWB-30 27 210 0.30 BT30
PSWB-40 37 230 0.40 BT40
PSWB-50 49 280 0.78 BT50
