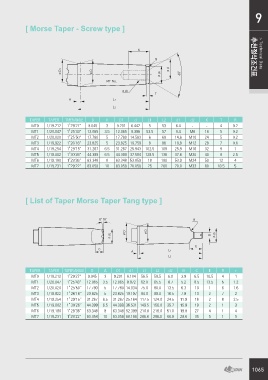

[ Morse Taper - Screw type ] 9

> Technical Data

추천절삭조건표

TAPER TAPER TAPER ANGLE D A D1 d L1 L2 d1 d2 K T R

MT0 1/19.212 1°29’27“ 9.045 3 9.201 6.442 5 53 6.4 - - 4 0.2

MT1 1/20.047 1°25’43“ 12.065 3.5 12.065 9.396 53.5 57 9.4 M6 16 5 0.2

MT2 1/20.020 1°25’50“ 17.780 5 17.780 14.583 6 69 14.6 M10 24 5 0.2

MT3 1/19.922 1°26’16“ 23.825 5 23.825 19.759 8 86 19.8 M12 28 7 0.6

MT4 1/19.254 1°29’15“ 31.267 6.5 31.267 25.943 102.5 109 25.9 M16 32 9 1

MT5 1/19.002 1°30’26“ 44.399 6.5 44.399 37.584 129.5 136 37.6 M20 40 9 2.5

MT6 1/19.180 1°29’36“ 63.348 8 63.348 53.859 18 190 53.9 M24 50 12 4

MT7 1/19.231 1°29’22“ 83.058 10 83.058 70.058 25 260 70.0 M33 80 18.5 5

[ List of Taper Morse Taper Tang type ]

TAPER TAPER TAPER ANGLE D A D1 d1 L1 L2 d2 B C E R r
MT0 1/19.212 1°29’27“ 9.045 3 9.201 6.104 56.5 59.5 6.0 3.9 6.5 10.5 4 1
MT1 1/20.047 1°25’43“ 12.065 3.5 12.065 8.972 62.0 65.5 8.7 5.2 8.5 13.5 5 1.2
MT2 1/20.020 1°25’50“ 17.780 5 17.780 14.034 75.0 80.0 13.5 6.3 10 1 6 1.6
MT3 1/19.922 1°26’16“ 23.825 5 23.825 19.107 94.0 99.0 18.5 7.9 13 2 7 2
MT4 1/19.254 1°29’15“ 31.267 6.5 31.267 25.164 117.5 124.0 24.5 11.9 16 2 8 2.5
MT5 1/19.002 1°30’26“ 44.399 6.5 44.399 36.531 149.5 156.0 35.7 15.9 19 2 1 3
MT6 1/19.180 1°29’36“ 63.348 8 63.348 52.399 210.0 218.0 51.0 19.0 27 4 1 4
MT7 1/19.231 1°29’22“ 83.058 10 83.058 68.186 286.0 296.0 66.8 28.6 35 5 1 5
