P. 1062
9

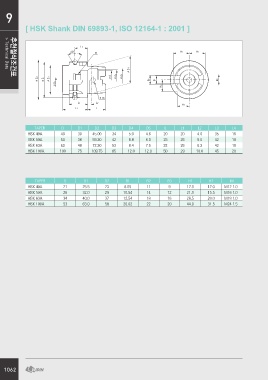

[ HSK Shank DIN 69893-1, ISO 12164-1 : 2001 ]
추천절삭조건표
> Technical Data
TAPER D D1 D2 D3 D4 D5 L L1 L2 L3 L4
HSK 40A 40 30 45.00 34 5.0 4.6 20 20 4.0 35 16
HSK 50A 50 38 59.30 42 6.8 6.0 25 26 5.0 42 18
HSK 63A 63 48 72.30 53 8.4 7.5 32 26 6.3 42 18
HSK 100A 100 75 109.75 85 12.0 12.0 50 29 10.0 45 20
TAPER D D1 D2 B1 B2 B3 H1 H2 M
HSK 40A 21 25.5 23 8.05 11 9 17.0 12.0 M12 1.0
HSK 50A 26 32.0 29 10.54 14 12 21.0 15.5 M16 1.0
HSK 63A 34 40.0 37 12.54 18 16 26.5 20.0 M18 1.0
HSK 100A 53 63.0 58 20.02 22 20 44.0 31.5 M24 1.5
1062
