P. 1064
9

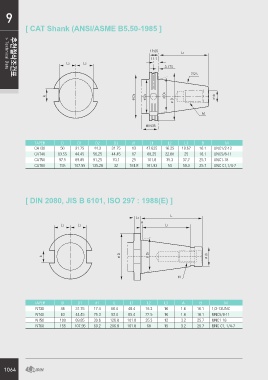

[ CAT Shank (ANSI/ASME B5.50-1985 ]
추천절삭조건표
> Technical Data
TAPER D D1 D2 D3 d1 L1 L2 L3 BM
CAT30 50 31.75 44.3 31.75 13 47.625 16.25 18.67 16.1 UNC1/2-13
CAT40 63.55 44.45 56.25 44.45 17 68.25 22.60 25 16.1 UNC5/8-11
CAT50 97.5 69.85 91.25 70.1 25 101.6 35.3 37.7 25.7 UNC1-18
CAT60 155 107.95 135.26 32 161.8 161.93 54 59.3 25.7 UNC C1,1/4-7
[ DIN 2080, JIS B 6101, ISO 297 : 1988(E) ]
TAPER D D1 d1 L L1 L2 L3 AB M
NT30 10
NT40 46 31.75 17.4 68.4 48.4 16.2 10 1.6 16.1 1/2-13UNC
NT50 12
NT60 63 44.45 25.3 93.4 65.4 22.5 15 1.6 16.1 UNC5/8-11
100 69.85 39.6 126.8 101.8 35.3 3.2 25.7 UNC1-18
155 107.95 60.2 206.8 161.8 60 3.2 25.7 UNC C1, 1/4-7
