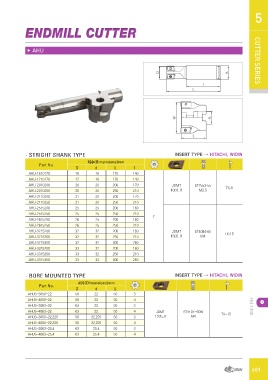

Page 681 - widin

ENDMILL CUTTER 5

▶ AHU CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → HITACHI, WIDIN

Part No. 치수(Dimensions)mm I
AHU-1610170 Dd L 140
16 16 170 140
170
AHU-1710170 17 16 170 210
170
AHU-2010200 20 20 200 210 JDMT ST2553-55 TX-8
160 1003..R M2.5
AHU-2010250 20 20 250 210
160
AHU-2110200 21 20 200 210
160
AHU-2110250 21 20 250 210
260
AHU-2515200 25 25 200 160
210
AHU-2515250 25 25 250 260 2

AHU-2615200 26 25 200

AHU-2615250 26 25 250

AHU-3215200 32 32 200 JDMT ST4084-60 TX-15
1505..R M4
AHU-3215250 32 32 250

AHU-3215300 32 32 300

AHU-3315200 33 32 200

AHU-3315250 33 32 250
AHU-3315300 33 32 300

- BORE MOUNTED TYPE INSERT TYPE → HITACHI, WIDIN

Part No. 치수(Dimensions)mm 3
AHUS-3050-22 Dd L 4
50 22 50 3
4
AHUS-4050-22 50 22 50 3 커터 시리즈
4
AHUS-3063-22 63 22 50 3
4
AHUS-4063-22 63 22 50 JDMT ST4101-60W TX-15
1505..R M4
AHUS-3050-22.225 50 22.225 50

AHUS-4050-22.225 50 22.225 50

AHUS-3063-25.4 63 25.4 50
AHUS-4063-25.4 63 25.4 50
