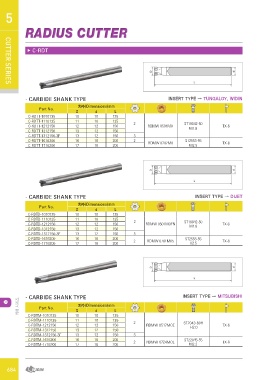

Page 684 - widin

CUTTER SERIES5
RADIUS CUTTER

▶ C-RDT

- CARBIDE SHANK TYPE INSERT TYPE → TUNGALOY, WIDIN

Part No. 치수(Dimensions)mm 2 RDMW 0501MO ST18042-50 TX-6
Dd L M1.8 TX-8
C-RDTT-1010135 10 10 135
C-RDTT-1110135 3
C-RDTT-1212150 11 10 135
C-RDTT-1312150 2 RDMW 0702M0 ST2553-55
C-RDTT-1312150-3F 12 12 150 M2.5
C-RDTT-1616200
C-RDTT-1716200 13 12 150

13 12 150

16 16 200
17 16 200

- CARBIDE SHANK TYPE INSERT TYPE → DIJET

Part No. 치수(Dimensions)mm 2 RDMW 0501MOEN ST18042-50 TX-6
Dd L M1.8 TX-8
C-RDTD-1010135 10 10 135
C-RDTD-1110135 3
C-RDTD-1212150 11 10 135
C-RDTD-1312150 2 RDMW 0701M05 ST2553-55
C-RDTD-1312150-3F 12 12 150 H2.5
C-RDTD-1616200
C-RDTD-1716200 13 12 150

13 12 150

16 16 200
17 16 200

커터 시리즈 - CARBIDE SHANK TYPE INSERT TYPE → MITSUBISHI

Part No. 치수(Dimensions)mm 2 RDMW 0517MOE ST2043-60H TX-6
Dd L H2.0 TX-8
C-RDTM-1010135 10 10 135
C-RDTM-1110135 3
C-RDTM-1212150 11 10 135
C-RDTM-1312150 2 RDMW 0724MOE ST22045-55
C-RDTM-1312150-3F 12 12 150 M2.2
C-RDTM-1616200
C-RDTM-1716200 13 12 150

13 12 150

16 16 200
17 16 200

684
