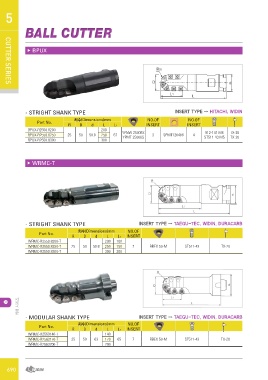

CUTTER SERIES5
BALL CUTTER

▶ BPUX

- STRIGHT SHANK TYPE INSERT TYPE → HITACHI, WIDIN

Part No. 치수(Dimensions)mm NO.OF NO.OF
R D d L L1 INSERT INSERT
BPUX-R2550.8200
BPUX-R2550.8250 200 YPNW 25006S 3 SPMT120408 4 912-141 M6 TX-25
BPUX-R2550.8300 YPMT 25006S ST511-43 M5 TX-20
25 50 50.8 250 67

300

▶ WRMC-T

- STRIGHT SHANK TYPE INSERT TYPE → TAEGU-TEC, WIDIN, DURACARB
NO.OF
Part No. 치수(Dimensions)mm INSERT
R D d L L1
WRMC-R2550.8200-T 7 RBEX 50-M ST511-43 TX-20
WRMC-R2550.8250-T 200 100
WRMC-R2550.8300-T
25 50 50.8 250 150

300 200

커터 시리즈 - MODULAR SHANK TYPE INSERT TYPE → TAEGU-TEC, WIDIN, DURACARB
NO.OF
Part No. 치수(Dimensions)mm INSERT
R D d L L1
WRMC-R2563140-T 7 RBEX 50-M ST511-43 TX-20
WRMC-R2563170-T 140
WRMC-R2563200-T
25 50 63 170 65

200

690
