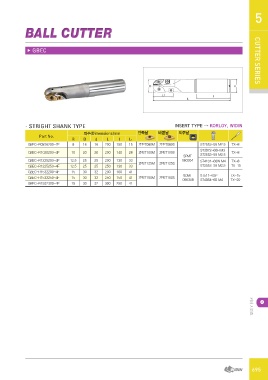

BALL CUTTER 5

▶ GBEC CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → KORLOY, WIDIN

Part No. 치수(Dimensions)mm 안쪽날 바깥날 외주날
GBEC-R0816200-2F RDd L I
8 16 16 200 150 L1 ST2553-55 M2.5 TX-8
15 ZPET080M ZPET080S

GBEC-R1020200-4F 10 20 20 200 140 28 ZPET100M ZPET100S SPMT ST3072-60H M3 TX-8
060304 ST2553-55 M2.5
GBEC-R1225200-4F 12.5 25 25 200 130 33 ZPET125M ZPET125S TX-8
GBEC-R1225250-4F 12.5 25 25 250 130 33 ST4101-60W M4 TX-15
GBEC-R1532200-4F 15 30 32 200 100 ST2553-55 M2.5
GBEC-R1532250-4F 15 30 32 250 150
GBEC-R1532300-4F 15 30 32 300 250 41 SDMT ST511-63P TX-15
41 ZPET150M ZPET150S 090308 ST4084-60 M4 TX-20
41
