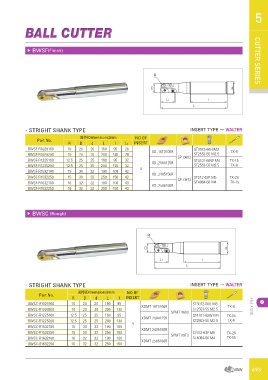

BALL CUTTER 5

▶ BWSF(Finish) CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → WALTER

Part No. 치수(Dimensions)mm NO.OF
RDd L I L1 INSERT
BWSF-R1020160 10 20 20 160 95
BWSF-R1020200 10 20 20 200 130 28 XD..16T3100R ST3072-60H M3 TX-8
BWSF-R1225160 12.5 25 25 160 95 28 ST2553-55 M2.5
BWSF-R1225200 12.5 25 25 200 130 32 SP..0603 TX-15
BWSF-R1532180 15 30 32 180 109 32 ST4101-60W M4 TX-8
42 XD..2004125R ST2553-55 M2.5
42 TX-20
43 4 TX-15
43
BWSF-R1532250 15 30 32 250 150 XD..2405150R SP..09T3 ST512-63P M5
XD..2506160R ST4084-60 M4
BWSF-R1632180 16 32 32 180 100
BWSF-R1632250 16 32 32 250 150

▶ BWSC (Rough)

- STRIGHT SHANK TYPE INSERT TYPE → WALTER

Part No. 치수(Dimensions)mm NO.OF
RDd L I INSERT
커터 시리즈
BWSC-R1020160 10 20 20 160 95 XDMT 16T3100R ST3072-60H M3 TX-8
ST2553-55 M2.5
BWSC-R1020200 10 20 20 200 130 XDMT 2004125R SPMT 0603 TX-15
4 ST4101-60W M4 TX-8
BWSC-R1225160 12.5 25 25 160 95 ST2553-55 M2.5
XDMT 2405150R
BWSC-R1225200 12.5 25 25 200 130
XDMT 2506160R
BWSC-R1532180 15 30 32 180 109

BWSC-R1532250 15 30 32 250 150 SPMT 09T3 ST512-63P M5 TX-20
ST4084-60 M4 TX-15
BWSC-R1632180 16 32 32 180 100

BWSC-R1632250 16 32 32 250 150

693
