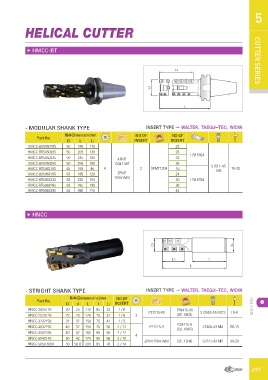

HELICAL CUTTER 5

▶ HMCC-BT CUTTER SERIES

- MODULAR SHANK TYPE INSERT TYPE → WALTER, TAEGU-TEC, WIDIN

Part No. 치수(Dimensions)mm 4 APMT NO.OF SPMT1204 NO.OF FPB 5024 ST511-43 TX-20
D L L1 1504T-WT INSERT INSERT FPB 6334 M5
HMCC-BT5050185 50 185 110
HMCC-BT5050205 50 205 130 ZPMT 2 22
HMCC-BT5050235 1504-WM 26
HMCC-BT5050255 50 235 160
HMCC-BT5063165 50 255 180 32
HMCC-BT5063195 63 169 90 36
HMCC-BT5063225 63 195 120 18
HMCC-BT5063265 63 225 150 24
HMCC-BT5063390 63 265 190 30
63 390 220 38
44

▶ HNCC

- STRIGHT SHANK TYPE INSERT TYPE → WALTER, TAEGU-TEC, WIDIN

Part No. 치수(Dimensions)mm NO.OF 2 P27215-00 P28415-00 ST2553-55 M2.5 TX-8 커터 시리즈
D d L I L1 INSERT 4 P27215-3 (SP..0603) ST408-43 M4 TX-15
HNCC-2025110 20 25 110 65 32 ZPMT1504-WM ST511-43 M5 TX-20
HNCC-2525120 25 25 120 75 32 1/6 P28415-0
HNCC-3232150 32 32 150 75 42 1/6 (SD..0903)
HNCC-4032155 40 32 155 75 50 1/5
HNCC-4042165 40 42 165 85 50 2 / 12 (SP..1204)
HNCC-5042170 50 42 170 85 56 2 / 12
HNCC-5050.8200 50 50.8 200 85 76 2 / 10
2 / 14
