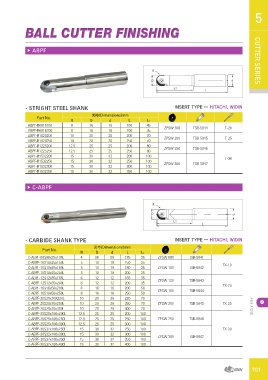

BALL CUTTER FINISHING 5

▶ ABPF CUTTER SERIES

- STRIGHT STEEL SHANK INSERT TYPE → HITACHI, WIDIN

Part No. 치수(Dimensions)mm

ABPF-R0816160 R D d L L1
ABPF-R0816200
ABPF-R1020200 8 16 16 160 45 ZPSW 160 TSB-5844 T-20
ABPF-R1020250 8 16 16 200 45 T-25
ABPF-R1225200
ABPF-R1225250 10 20 20 200 70 ZPSW 200 TSB-5845 T-30
ABPF-R1532200 10 20 20 250 70
ABPF-R1532250
ABPF-R1532300 12.5 25 25 200 80 ZPSW 250 TSB-5846
ABPF-R1532350 12.5 25 25 250 80

15 30 32 200 100

15 30 32 250 100 ZPSW 300 TSB-5847
15 30 32 300 100

15 30 32 350 100

▶ C-ABPF

- CARBIDE SHANK TYPE INSERT TYPE → HITACHI, WIDIN

Part No. R 치수(Dimensions)mm L1 ZPSW 080 TSB-5841 TX-10 커터 시리즈
4 Dd L 25 ZPSW 100 TSB-5842 TX-20
C-ABPF-08S08x25x135L 5 08 08 135 25 ZPSW 120 TSB-5843 TX-25
C-ABPF-10S10x25x150L 5 10 10 150 25 ZPSW 160 TSB-5844
C-ABPF-10S10x25x180L 5 10 10 180 25 ZPSW 200 TSB-5845 TX-30
C-ABPF-10S10x25x200L 6 10 10 200 35
C-ABPF-12S12x35x165L 6 12 12 165 35 ZPSW 250 TSB-5846
C-ABPF-12S12x35x200L 8 12 12 200 50
C-ABPF-16S16x50x200L 8 16 16 200 50 ZPSW 300 TSB-5847
C-ABPF-16S16x50x250L 10 16 16 250 70
C-ABPF-20S20x70X220L 10 20 20 220 70
C-ABPF-20S20x70x250L 10 20 20 250 70
C-ABPF-20S20x70x300L 12.5 20 20 300 100
C-ABPF-25S25x100x200L 12.5 25 25 200 100
C-ABPF-25S25x100x250L 12.5 25 25 250 100
C-ABPF-25S25x100x300L 15 25 25 300 100
C-ABPF-30S32x100x250L 15 30 32 250 100
C-ABPF-30S32x100x300L 15 30 32 300 100
C-ABPF-30S32x100x350L 15 30 32 350 100
C-ABPF-30S32x100x400L 30 32 400
