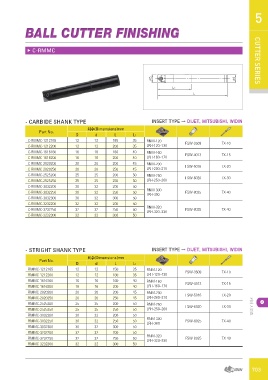

BALL CUTTER FINISHING 5

▶ C-RMMC CUTTER SERIES

- CARBIDE SHANK TYPE INSERT TYPE → DIJET, MITSUBISHI, WIDIN

Part No. 치수(Dimensions)mm L1 RNM-120 FSW-3509 TX-10
C-RMMC-1212165 Dd L 35 LRH-120~130 FSW-4013 TX-15
12 12 165 35 FSW-5016 TX-20
40 RNM-160 FSW-6020 TX-30
C-RMMC-1212200 12 12 200 40 LRH-160~170 FSW-8025 TX-40
C-RMMC-1616160 16 16 160 45
C-RMMC-1616200 16 16 200 45 RNM-200 FSW-8025 TX-40
C-RMMC-2020200 20 20 200 50 LRH-200~210
C-RMMC-2020250 20 20 250 50
C-RMMC-2525200 25 25 200 50 RNM-250
C-RMMC-2525250 25 25 250 50 LRH-250~260
C-RMMC-3032200 30 32 200 50
C-RMMC-3032250 30 32 250 50 RNM-300
C-RMMC-3032300 30 32 300 50 LRH-300
C-RMMC-3232200 32 32 200 50
C-RMMC-3232250 32 32 250 RNM-320
C-RMMC-3232300 32 32 300 LRH-320~330

- STRIGHT SHANK TYPE INSERT TYPE → DIJET, MITSUBISHI, WIDIN

Part No. 치수(Dimensions)mm L1 RNM-120 FSW-3509 TX-10 커터 시리즈
Dd L 35 LRH-120~130 FSW-4013 TX-15
RMMC-1212165 12 12 150 35 FSW-5016 TX-20
RMMC-1212200 12 12 180 40 RNM-160 FSW-6020 TX-30
RMMC-1616160 16 16 160 40 LRH-160~170 FSW-8025 TX-40
RMMC-1616200 16 16 200 45
RMMC-2020200 20 20 200 45 RNM-200 FSW-8025 TX-40
RMMC-2020250 20 20 250 50 LRH-200~210
RMMC-2525200 25 25 200 50
RMMC-2525250 25 25 250 50 RNM-250
RMMC-3032200 30 32 200 50 LRH-250~260
RMMC-3032250 30 32 250 50
RMMC-3032300 30 32 300 50 RNM-300
RMMC-3232200 32 32 200 50 LRH-300
RMMC-3232250 32 32 250 50
RMMC-3232300 32 32 300 RNM-320
LRH-320~330

703
