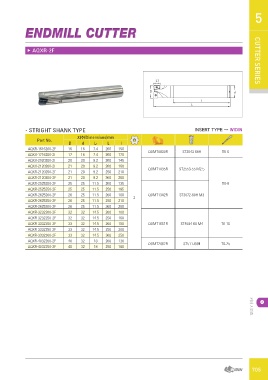

Page 705 - widin

ENDMILL CUTTER 5

▶ AQXR-2F CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → WIDIN

Part No. 치수(Dimensions)mm I QOMT0830R ST2043-60H TX-6
D d L1 L 150 TX-8
AQXR-1616200-2F 16 16 7.4 200 170 QOMT1035R ST2553-55 M2.5
AQXR-1716200-2F 17 16 7.4 200 145
AQXR-2020200-2F 20 20 9.2 200 160 2 QOMT1342R ST3072-60H M3
AQXR-2120200-2F 21 20 9.2 200 210
AQXR-2120250-2F 21 20 9.2 250 260 QOMT1651R ST4084-60 M4 TX-15
AQXR-2120300-2F 21 20 9.2 300 135 TX-25
AQXR-2525200-2F 25 25 11.5 200 185 QOMT2062R ST511-60H
AQXR-2525250-2F 25 25 11.5 250 160
AQXR-2625200-2F 26 25 11.5 200 210
AQXR-2625250-2F 26 25 11.5 250 260
AQXR-2625300-2F 26 25 11.5 300 100
AQXR-3232200-2F 32 32 14.5 200 160
AQXR-3232250-2F 32 32 14.5 250 150
AQXR-3332200-2F 33 32 14.5 200 200
AQXR-3332250-2F 33 32 14.5 250 250
AQXR-3332300-2F 33 32 14.5 300 130
AQXR-4032200-2F 40 32 18 200 180
AQXR-4032250-2F 40 32 18 250

커터 시리즈

705
