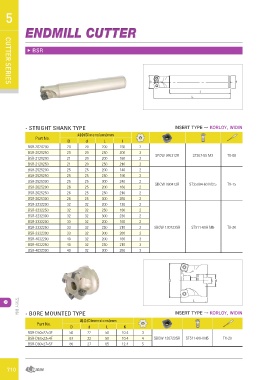

CUTTER SERIES5
ENDMILL CUTTER

▶ BSR

- STRIGHT SHANK TYPE INSERT TYPE → KORLOY, WIDIN

Part No. 치수(Dimensions)mm I 2
BSR-2020200 Dd L 150
20 20 200 200
160
BSR-2020250 20 20 250 210 2 SPCW 070312R ST307-55 M3 TX-08
140 2
BSR-2120200 21 20 200 190
240
BSR-2120250 21 20 250 160 2
210
BSR-2525200 25 25 200 260 2
130
BSR-2525250 25 25 250 180 2
230
BSR-2525300 25 25 300 160 2 SDCW 090412R ST35084-60 M3.5 TX-15
210 2
BSR-2625200 26 25 200 260
160
BSR-2625250 26 25 250 210 2
260
BSR-2625300 26 25 300 2

BSR-3232200 32 32 200 2

BSR-3232250 32 32 250 2

BSR-3232300 32 32 300 2

BSR-3332200 33 32 200 2

BSR-3332250 33 32 250 2 SBCW 130723SR ST511-60H M5 TX-20

BSR-3332300 33 32 300 2

BSR-4032200 40 32 200 3

BSR-4032250 40 32 250 3

BSR-4032300 40 32 300 3

커터 시리즈 - BORE MOUNTED TYPE INSERT TYPE → KORLOY, WIDIN

Part No. 치수(Dimensions)mm K 3
BSR-D50×22×3F Dd L 10.4 4 SBCW 130723SR ST511-60H M5
50 22 50 10.4 5
12.4
BSR-D63×22×4F 63 22 50 TX-20
BSR-D80×27×5F 80 27 65

710
