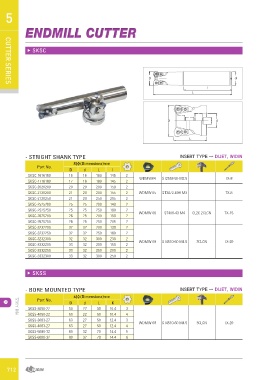

Page 712 - widin

CUTTER SERIES5
ENDMILL CUTTER

▶ SKSC

- STRIGHT SHANK TYPE INSERT TYPE → DIJET, WIDIN

Part No. 치수(Dimensions)mm
DdL I

SKSC-1616180 16 16 180 145 2 WDMW04 ST2553-55 M2.5 TX-8
SKSC-1716180 17 16 180 145 2

SKSC-2020200 20 20 200 150 2

SKSC-2120200 21 20 200 155 2 WDMW 05 ST3072-60H M3 TX-8

SKSC-2120250 21 20 250 205 2

SKSC-2525200 25 25 200 140 2

SKSC-2525250 25 25 250 190 2 WDMW 06 ST408-43 M4 CL2C 2CLCN TX-15
SKSC-2625200 26 25 200 150 2

SKSC-2625250 26 25 250 205 2

SKSC-3232200 32 32 200 130 2

SKSC-3232250 32 32 250 180 2

SKSC-3232300 32 32 300 230 2 WDMW 08 ST4510-60 M4.5 3CLCN TX-20
SKSC-3332200 33 32 200 150 2

SKSC-3332250 33 32 250 200 2

SKSC-3332300 33 32 300 250 2

▶ SKSS

- BORE MOUNTED TYPE INSERT TYPE → DIJET, WIDIN

커터 시리즈 Part No. 치수(Dimensions)mm
Dd L K

SKSS-3050-22 50 22 50 10.4 3
4
SKSS-4050-22 50 22 50 10.4 3
4
SKSS-3063-27 63 27 50 12.4 5 WDMW 08 ST4510-60 M4.5 3CLCN TX-20
6
SKSS-4063-27 63 27 50 12.4

SKSS-5080-32 80 32 70 14.4

SKSS-6080-32 80 32 70 14.4

712
