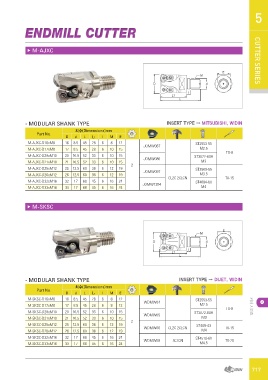

ENDMILL CUTTER 5

▶ M-AJXC CUTTER SERIES

- MODULAR SHANK TYPE INSERT TYPE → MITSUBISHI, WIDIN

Part No. 치수(Dimensions)mm E JOMW06T ST2553-55
M-AJXC-D16xM8 D d L L1 I M 12 JOMW080 M2.5
16 8.5 45 28 6 8 15 JOMW09T
15 JOMW1204 ST3072-60H
M-AJXC-D17xM8 17 8.5 45 28 6 10 15 M3 TX-8
19 TX-15
M-AJXC-D20xM10 20 10.5 52 33 6 10 19 ST3509-55
24 M3.5
M-AJXC-D21xM10 21 10.5 52 33 6 10 24 2
ST4084-60
M-AJXC-D25xM12 25 12.5 60 38 6 12 M4

M-AJXC-D26xM12 26 12.5 60 38 6 12 CL2C 2CLCN

M-AJXC-D32xM16 32 17 68 45 6 16

M-AJXC-D33xM16 33 17 68 45 6 16

▶ M-SKSC

- MODULAR SHANK TYPE INSERT TYPE → DIJET, WIDIN

Part No. 치수(Dimensions)mm E WDMW04 ST2553-55 커터 시리즈
M-SKSC-D16xM8 D d L L1 I M 12 WDMW05 M2.5
16 8.5 45 28 6 8 12 WDMW06
15 WDMW08 ST3072-60H
M-SKSC-D17xM8 17 8.5 45 28 6 8 15 M3 TX-8
19
M-SKSC-D20xM10 20 10.5 52 33 6 10 19 ST408-43 TX-15
24 M4 TX-20
M-SKSC-D21xM10 21 10.5 52 33 6 10 24 2
ST4510-60
M-SKSC-D25xM12 25 12.5 60 38 6 12 CL2C 2CLCN M4.5
3CLCN
M-SKSC-D26xM12 26 12.5 60 38 6 12

M-SKSC-D32xM16 32 17 68 45 6 16

M-SKSC-D33xM16 33 17 68 45 6 16
