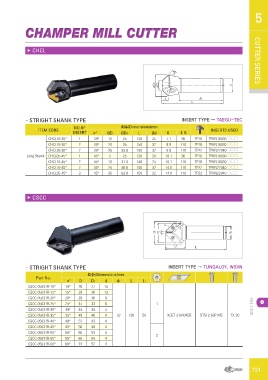

CHAMPER MILL CUTTER 5

▶ CCHHCCLL CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → TAEGU-TEC

ITEM CODE NO.OF 치수(Dimensions)mm INSERTS USED

INSERT α。 ØD ØDr L Ød ℓ ℓS

CHCL10-30° 1 30° 10 25 120 25 7.1 90 TP16 TPKN16030

CHCL20-30° 2 30° 20 35 150 32 9.9 110 TP16 TPKN16030

CHCL35-30° 2 30° 35 55.8 150 32 9.9 110 TP22 TPKN22040

Long Shank CHCL05-45° 1 45° 5 25 120 20 10.1 90 TP16 TPKN16030

CHCL10-45° 2 45° 10 31.0 140 25 10.1 110 TP16 TPKN16030

CHCL20-45° 2 45° 20 48.8 150 32 14.0 110 TP22 TPKN22040

CHCL35-45° 3 45° 35 63.8 150 32 14.0 110 TP22 TPKN22040

▶ CSCC

- STRIGHT SHANK TYPE INSERT TYPE → TUNGALOY, WIDIN

Part No. 치수(Dimensions)mm L1
α。 D D1 d d1 L

CSCC-05031R-10° 10° 26 27 14

CSCC-05031R-15° 15° 29 30 13

CSCC-05031R-20° 20° 29 30 9 커터 시리즈

CSCC-05031R-25° 25° 37 33 6 1

CSCC-05031R-30° 30° 44 34 5

CSCC-05031R-35° 35° 49 40 4 32 130 50 XCET 310404ER ST512-63P M5 TX-20

CSCC-05031R-40° 40° 51 43 4

CSCC-05031R-45° 45° 56 48 4

CSCC-05031R-50° 50° 60 53 4 2
CSCC-05031R-55° 55° 65 55 4

CSCC-05031R-60° 60° 74 57 4

721
