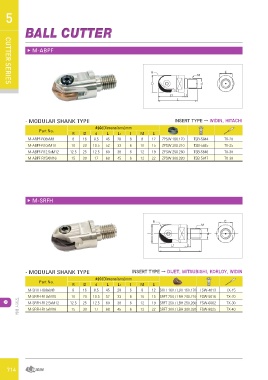

CUTTER SERIES5
BALL CUTTER

▶ M-ABPF

- MODULAR SHANK TYPE INSERT TYPE → WIDIN, HITACHI

Part No. 치수(Dimensions)mm
M-ABPF-R08xM8
R D d L L1 I M E

8 16 8.5 45 28 6 8 12 ZPSW 160.170 TSB-5844 TX-20

M-ABPF-R10xM10 10 20 10.5 52 33 6 10 15 ZPSW 200.210 TSB-5845 TX-25

M-ABPF-R12.5xM12 12.5 25 12.5 60 38 6 12 19 ZPSW 250.260 TSB-5846 TX-30

M-ABPF-R15XM16 15 30 17 68 45 6 12 22 ZPSW 300.320 TSB-5847 TX-30

▶ M-SRFH

- MODULAR SHANK TYPE INSERT TYPE → DIJET, MITSUBISHI, KORLOY, WIDIN

Part No. 치수(Dimensions)mm
M-SRFH-R08xM8
R D d L L1 I M E

8 16 8.5 45 28 6 8 12 SRFT 160 / LBH 160.170 FSW-4013 TX-15

커터 시리즈 M-SRFH-R10xM10 10 20 10.5 52 33 6 10 15 SRFT 200 / LBH 200.210 FSW-5016 TX-20

M-SRFH-R12.5xM12 12.5 25 12.5 60 38 6 12 19 SRFT 250 / LBH 250.260 FSW-6062 TX-30

M-SRFH-R15xM16 15 30 17 68 45 6 12 22 SRFT 300 / LBH 300.320 FSW-8025 TX-40

714
