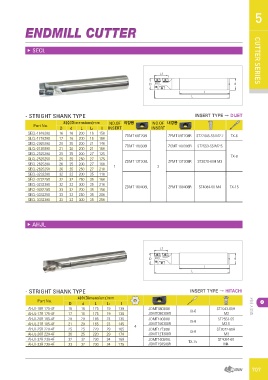

ENDMILL CUTTER 5

▶ SECL CUTTER SERIES

- STRIGHT SHANK TYPE INSERT TYPE → DIJET

Part No. 치수(Dimensions)mm NO.OF 외경용 NO.OF 내경용 ST22045-55 M2.2 TX-6
D d L L1 I INSERT INSERT
SECL-1616200 16 16 200 16 150 ST2553-55 M2.5
SECL-1716200 17 16 200 16 160 ZDMT 08T208L ZPMT 09T208R
SECL-2020200 20 20 200 21 140 ZDMT 100308L ZCMT 100308R TX-8
SECL-2120200 21 20 200 21 160
SECL-2525200 25 25 200 27 125 ZDMT 13T308L ZPMT 13T308R ST3070-60H M3
SECL-2525250 25 25 250 27 175 1 3
SECL-2625200 26 25 200 27 160 ST4084-60 M4 TX-15
SECL-2625250 26 25 250 27 210 ZDMT 160408L ZPMT 160408R
SECL-3232200 32 32 200 35 110
SECL-3232250 32 32 250 35 160
SECL-3232300 32 32 300 35 210
SECL-3332200 33 32 200 35 150
SECL-3332250 33 32 250 35 200
SECL-3332300 33 32 300 35 250

▶ AHJL

- STRIGHT SHANK TYPE INSERT TYPE → HITACHI

Part No. 치수(Dimensions)mm I JDMT080308L TX-6 ST2043-60H 커터 시리즈
AHJL-16R 175-4F 130 JDMT090308R TX-8 M2
D d L L1 138 TX-8
16 16 175 19 135 JDMT100308L TX-15 ST2553-55
145 JDMT100308R M2.5
AHJL-17R 175-4F 17 16 175 19 165
170 JDMT12T308L ST3072-60H
AHJL-20R 185-4F 20 20 185 23 160 4 JDMT12T308R M3
AHJL-21R 185-4F 21 20 185 23 175
AHJL-25R 220-4F 25 25 220 29 JDMT160508L ST4084-60
AHJL-26R 220-4F 26 25 220 29 JDMT150508R M4

AHJL-32R 230-4F 32 32 230 34
AHJL-33R 230-4F 33 32 230 34

707
