P. 803

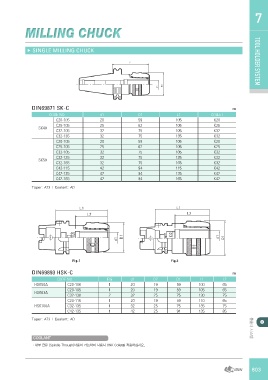

MILLING CHUCK TOOL HOLDER7
▶ SINGLE MILLING CHUCK TOOL HOLDER SYSTEM
DIN69871 SK-C ㎜
CODE NO. d1 D1 L1 COLLET
20 59 105 K20
C20-105 25 62 105 K25
32 75 105 K32
SK40 C25-105 32 75 135 K32
C32-105 20 59 105 K20
25 62 105 K25
C32-135 32 75 105 K32
32 75 135 K32
C20-105 32 75 165 K32
42 94 115 K42
C25-105 42 94 135 K42
42 94 165 K42
C32-105
SK50 C32-135
C32-165
C42-115
C42-135
C42-165
Taper : AT3 | Coolant : AD
DIN69893 HSK-C ㎜
HSK50A CODE NO. FIG d1 D2 D1 L1 L2
HSK63A C20-100 1 20 19 59 100 65
C20-105 1 20 19 59 105 65
HSK100A C32-130 2 32 25 75 130 75
C20-110 1 20 19 59 110 65
C32-135 1 32 25 75 135 75
C42-135 1 42 25 94 135 85
Taper : AT3 | Coolant : AD 툴홀더 시스템
COOLANT
ㆍ내 부 급유 (Spindle Through)사용이 가능하며 사용시 ONK Collet를 적용하십시요.
