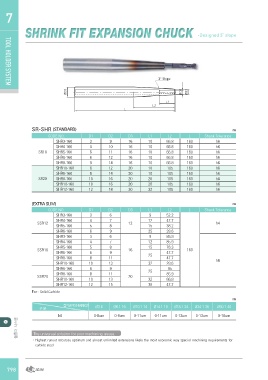

TOOL HTOOOLLDHEOLRDER SYSTEM7
SHHRRIINNKKFFITITECXPHAUNCSKIO-NDesigCnedH3˚UslopCe K -Designed 3˚ slope

SR-SHR (STANDARD) ㎜

CODE NO. D1 D2 D3 L1 L2 L Shank Tolerance

SHR3-160 3 9 16 10 66.8 160 h6

SHR4-160 4 10 16 10 66.8 160 h6

SR16 SHR5-160 5 11 16 10 66.8 160 h6

SHR6-160 6 12 16 10 66.8 160 h6

SHR8-160 8 14 16 10 66.8 160 h6

SHR10-160 6 12 20 10 105 160 h6

SHR6-160 8 14 20 10 105 160 h6

SR20 SHR8-160 10 16 20 26 105 160 h6

SHR10-160 10 16 20 26 105 160 h6

SHR12-160 12 18 20 32 105 160 h6

(EXTRA SLIM) ㎜

CODE NO. D1 D2 D3 L1 L2 L Shank Tolerance

SHR3-160 3 6 9 52.2

SSR12 SHR4-160 4 7 12 12 47.7 h4
SHR5-160 5 8 15 38.2

SHR6-160 6 9 25 28.6

SHR3-160 3 6 9 85.9

SHR4-160 4 7 12 85.9

SSR16 SHR5-160 5 8 16 15 76.3 160
SHR6-160 6 9 25 47.7
SHR8-160 8 11
47.7 h6

SHR10-160 10 13 32 28.6

SHR6-160 6 9 25 95
SHR8-160 8 11 85.9
SSR20 SHR10-160 10 13 20
32 66.8

SHR12-160 12 15 38 47.7

For : Solid Carbide

㎜

구분 절삭공구SHANKØ Ø3-6 Ø6.1-10 Ø10.1-14 Ø14.1-18 Ø18.1-24 Ø24.1-30 Ø30.1-40

툴홀더 시스템 h6 0-8um 0-9um 0-11um 0-11um 0-13um 0-13um 0-16um

The universal solution for your machining issues.

ㆍHighest runout accuracy optimum and almost unlimited extensions likely the most economic way special machining requirements for
carbide steel
