P. 795

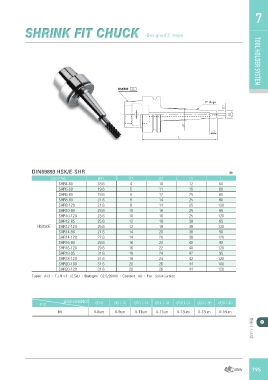

SHRINK FIT CHUCK -Designed 3˚ slope TOOL HOLDER7
TOOL HOLDER SYSTEM
DIN69893 HSK/E-SHR ㎜
CODE NO. Ød1 D1 D2 L1 L
SHR4-60 18.6 4 10 12 60
SHR5-60 19.6 5 11 15 60
SHR6-60 19.6 6 12 25 60
SHR8-80 21.6 8 14 25 80
SHR8-120 21.6 8 14 25 120
SHR10-80 23.6 10 16 25 80
SHR10-120 23.6 10 16 25 120
SHR12-85 25.6 12 18 38 85
25.6 12 18 38 120
HSK50E SHR12-120 27.6 14 20 38 90
SHR14-90 27.6 14 20 38 120
SHR14-120 29.6 16 22 40 90
SHR16-90 29.6 16 22 40 120
SHR16-120 31.6 18 24 42 95
SHR18-95 31.6 18 24 42 120
SHR18-120 31.6 20 26 44 100
SHR20-100 31.6 20 26 44 120
SHR20-120
Taper : AT3 | T.I.R ≥3 : /2.5xD | Bal/rpm : G2.5/20000 | Coolant : AD | For : Solid Carbide
구분 절삭공구SHANKØ Ø3-6 Ø6.1-10 Ø10.1-14 Ø14.1-18 Ø18.1-24 Ø24.1-30 Ø30.1-40
h6 0-8um 0-9um 0-11um 0-11um 0-13um 0-13um 0-16um
툴홀더 시스템
795
