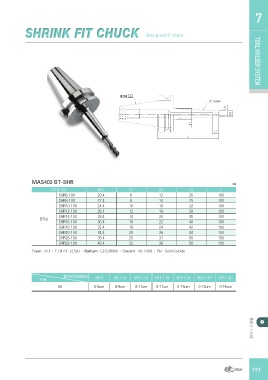

SHRINK FIT CHUCK -Designed 3˚ slope TOOL HOLDER7

TOOL HOLDER SYSTEM

MAS403 BT-SHR ㎜

CODE NO. Ød1 D1 D2 L1 L
100
SHR6-100 20.4 6 12 25 100
100
SHR8-100 22.4 8 14 25 100
100
SHR10-100 24.4 10 16 32 100
100
SHR12-100 26.4 12 18 38 100
100
BT50 SHR14-100 28.4 14 20 40 100
SHR16-100 30.4 16 22 40

SHR18-100 32.4 18 24 42

SHR20-100 34.4 20 26 44

SHR25-100 39.4 25 31 50

SHR32-100 46.4 32 38 50

Taper : AT3 | T.I.R ≥3 : /2.5xD | Bal/rpm : G2.5/20000 | Coolant : AD, AD/B | For : Solid Carbide

구분 절삭공구SHANKØ Ø3-6 Ø6.1-10 Ø10.1-14 Ø14.1-18 Ø18.1-24 Ø24.1-30 Ø30.1-40

h6 0-8um 0-9um 0-11um 0-11um 0-13um 0-13um 0-16um

툴홀더 시스템
