P. 789

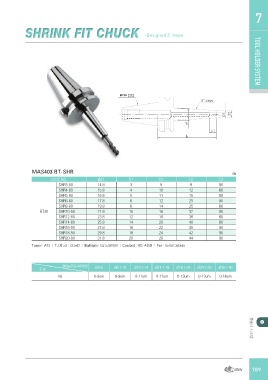

SHRINK FIT CHUCK -Designed 3˚ slope TOOL HOLDER7
TOOL HOLDER SYSTEM
MAS403 BT-SHR ㎜
CODE NO. Ød1 D1 D2 L1 L2
80
SHR3-80 14.8 3 9 9 80
80
SHR4-80 15.8 4 10 12 80
80
SHR5-80 16.8 5 11 15 80
80
SHR6-80 17.8 6 12 25 80
90
SHR8-80 19.8 8 14 25 90
90
BT30 SHR10-80 21.8 10 16 32
SHR12-80 23.8 12 18 38
SHR14-80 25.8 14 20 40
SHR16-90 27.8 16 22 40
SHR18-90 29.8 18 24 42
SHR20-90 31.8 20 26 44
Taper : AT3 | T.I.R ≥3 : /2.5xD | Bal/rpm : G2.5/20000 | Coolant : AD, AD/B | For : Solid Carbide
구분 절삭공구SHANKØ Ø3-6 Ø6.1-10 Ø10.1-14 Ø14.1-18 Ø18.1-24 Ø24.1-30 Ø30.1-40
h6 0-8um 0-9um 0-11um 0-11um 0-13um 0-13um 0-16um
툴홀더 시스템
