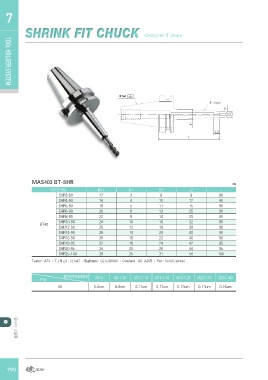

Page 790 - widin

TOOL HTOOOLLDHEOLRDER SYSTEM7
SHRINK FIT CHUCK -Designed 3˚ slope

MAS403 BT-SHR ㎜

CODE NO. Ød1 D1 D2 L2 L
90
SHR3-90 17 3 9 9 90
90
SHR4-90 18 4 10 12 90
90
SHR5-90 19 5 11 15 90
90
SHR6-90 20 6 12 25 90
90
SHR8-90 22 8 14 25 95
95
BT40 SHR10-90 24 10 16 32 100
SHR12-90 26 12 18 38

SHR14-90 28 14 20 40

SHR16-90 30 16 22 40

SHR18-95 32 18 24 42

SHR20-95 34 20 26 44

SHR25-100 39 25 31 50

Taper : AT3 | T.I.R ≥3 : /2.5xD | Bal/rpm : G2.5/20000 | Coolant : AD, AD/B | For : Solid Carbide

구분 절삭공구SHANKØ Ø3-6 Ø6.1-10 Ø10.1-14 Ø14.1-18 Ø18.1-24 Ø24.1-30 Ø30.1-40

h6 0-8um 0-9um 0-11um 0-11um 0-13um 0-13um 0-16um

툴홀더 시스템

790
