P. 849

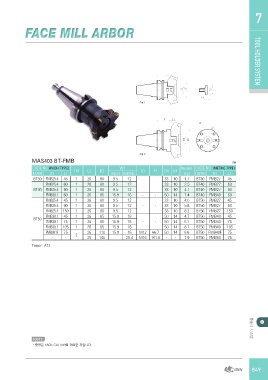

FACE MILL ARBOR TOOL HOLDER7
TOOL HOLDER SYSTEM
MAS403 BT-FMB ㎜
CODE NO.(INCH TYPE) FIG L2 D2 W1 G1 P1 D4 L4 WEIGHT CODE NO..(METRIC TYPE)
TAPER D1 L1 INCH METRIC
(kg) TAPER D1 L1
BT30 FMB25.4 45 1 26 80 9.5 12 33 10 1.7 BT30 FMB27 45
FMB25.4 60 1 26 80 9.5 12 - - 33 10 2.5 BT40 FMB27 60
BT40 FMB25.4 90 1 26 80 9.5 12 33 10 4.7 BT40 FMB27 90
FMB38.1 60 1 26 85 15.9 16 - - 50 14 7.4 BT40 FMB40 60
FMB25.4 45 1 26 80 9.5 12 33 10 4.0 BT50 FMB27 45
FMB25.4 90 1 26 80 9.5 12 - - 33 10 5.8 BT50 FMB27 90
FMB25.4 150 1 26 80 9.5 12 33 10 8.2 BT50 FMB27 150
BT50 FMB38.1 45 1 26 85 15.9 16 - 50 14 4.7 BT50 FMB40 45
FMB38.1 75 1 26 85 15.9 16 - 50 14 6.1 BT50 FMB40 75
FMB38.1 105 1 26 85 15.9 16 50 14 8.7 BT50 FMB40 105
FMB38.1F 75 2 26 110 15.9 16 M12 66.7 50 14 6.6 BT50 FMB40F 75
--
25 140 25.4 M16 101.6 - - 7.9 BT50 FMB60 75
Taper : AT3
NOTE 툴홀더 시스템
ㆍ중량은 FACE CUTTER를 제외한 것입니다.
849
