P. 851

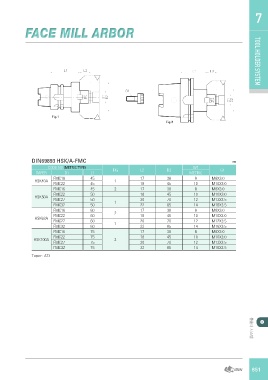

FACE MILL ARBOR TOOL HOLDER7
TOOL HOLDER SYSTEM
DIN69893 HSK/A-FMC ㎜
CODE NO.(METRIC TYPE) FIG L2 D2 W1 G1
METRIC
TAPER D1 L1
HSK40A FMC16 45 1 17 38 8 M8X3.0
FMC22 45
18 45 10 M10X3.0
FMC16 45 2 17 38 8 M8X3.0
HSK50A FMC22 50 18 45 10 M10X3.0
FMC27 20 70 12 M12X3.5
FMC32 50 1 22 85 14 M16X3.5
50
FMC16 60 2 17 38 8 M8X3.0
FMC22 60
HSK63A FMC27 18 45 10 M10X3.0
FMC32
60 1 20 70 12 M12X3.5
60
22 85 14 M16X3.5
FMC16 75 17 38 8 M8X3.0
HSK100A FMC22 75 2 18 45 10 M10X3.0
FMC27 75 20 70 12 M12X3.5
FMC32 75 22 85 14 M16X3.5
Taper : AT3
툴홀더 시스템
851
