LIVE CENTER8

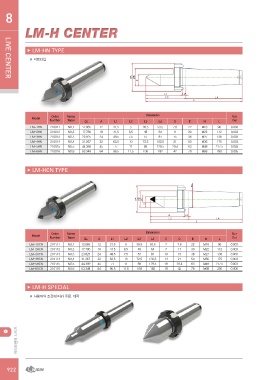

LM-H CENTER

▶ LM-HN TYPE

※ 너트타입

Model Order Morse GL A Dimension D E N Run
Number Taper L1 L2 L3 L4 L Out

LM-1HN 210011 NO.1 12.065 12 31.5 5 36.5 53.5 7.6 22 M16 90 0.003

LM-2HN 210012 NO.2 17.780 18 41.5 6.5 48 64 11 30 M22 112 0.003

LM-3HN 210013 NO.3 23.825 24 49.5 7.5 57 81 15 38 M27 138 0.003

LM-4HN 210014 NO.4 31.267 32 62.5 10 72.5 102.5 21 50 M36 175 0.003

LM-5HN 210015 NO.5 44.399 45 77 11 88 129.5 29.4 63 M48 217.5 0.003

LM-6HN 210016 NO.6 63.348 64 96.5 11.5 108 182 42 79 M68 290 0.005

▶ LM-HCN TYPE

Model Order Morse GL A Dimension D E N L Run
Number Taper L1 L2 L3 L4 C Out

LM-1HCN 210111 NO.1 12.065 12 31.5 5 36.5 53.5 7 7.6 22 M16 90 0.003

LM-2HCN 210112 NO.2 17.780 18 41.5 6.5 48 64 7 11 30 M22 112 0.003

LM-3HCN 210113 NO.3 23.825 24 49.5 7.5 57 81 10 15 38 M27 138 0.003

LM-4HCN 210114 NO.4 31.267 32 62.5 10 72.5 102.5 14 21 50 M36 175 0.003

LM-5HCN 210115 NO.5 44.399 45 77 11 88 129.5 18 29.4 63 M48 217.5 0.003

LM-6HCN 210116 NO.6 63.348 64 96.5 11.5 108 182 18 42 79 M68 290 0.005

▶ LM-H SPECIAL

※ 사용자의 조건에 따라 주문. 제작

라이브센터 시리즈

922
