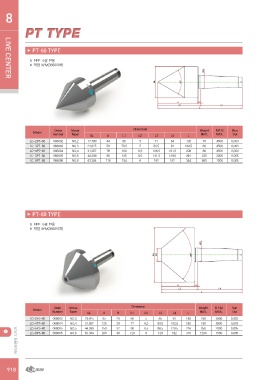

Page 918 - widin

LIVE CENTER8
PT TYPE

▶ PT-60 TYPE

※ PIPE 가공 전용
※ 적정 RPM(3800이하)

Model Order Morse GL A Dimension L4 L Weight R.P.M Run
Number Taper MAX. MAX. Out
LC-2PT-60 17.780 44 L1 L2 L3 64 135
LC-3PT-60 066002 NO.2 23.825 56 66 5 71 81 164.5 70 4500 0.003
LC-4PT-60 066003 NO.3 31.267 78 78.5 5 83.5 101.5 208 80 4500 0.003
LC-5PT-60 066004 NO.4 44.399 98 100 6.5 106.5 129.5 261 80 4500 0.003
LC-6PT-60 066005 NO.5 63.384 118 125 6.5 131.5 182 344 230 2000 0.005
066006 NO.6 154 8 162 600 1500 0.005

▶ PT-80 TYPE

※ PIPE 가공 전용
※ 적정 RPM(3800이하)

Model Order Morse Dimension Weight R.P.M Run
Number Taper B L1 L2 L3 L4
GL A L MAX. MAX. Out

LC-3PT-80 068003 NO.3 23.825 95 20 66 5 65 81 146 190 3800 0.003

LC-4PT-80 068004 NO.4 31.267 125 29 77 6.5 83.5 102.5 185 190 3800 0.003

라이브센터 시리즈 LC-5PT-80 068005 NO.5 44.399 150 32 90 6.5 96.5 129.5 226 350 2000 0.005

LC-6PT-80 068006 NO.6 63.384 200 38 120 8 128 182 310 1200 1500 0.005
